Fox ESS Inverters

This 10kW 3ph AC coupled inverter from Fox ESS can be utilised with the full range of Fox batteries, ECS & HV. Providing installers with a vast range of ESS solutions to meet each homeowners specific requirements.With the ability to parallel up to 10 x 3ph AC coupled inverters, this inverter solution is suitable for high power commercial systems enabling you to configure the system to best meet the needs of your customers. With WiFi, built-in fuse protection and built-in DC switch all coming as standard, these inverters are easy to install while providing a number of safety features. EPS (emergency power supply) functionality is also inbuilt, so you can keep the power on during power cuts with no effect to the inverter's output power and with IP65 protection rating these inverters, along with their ECS batteries (also IP65 rated), can be installed outside saving space in the home. Note: Separate 3ph CHINT Meter required for installations   For more information please see the data sheet linked below

Read more less

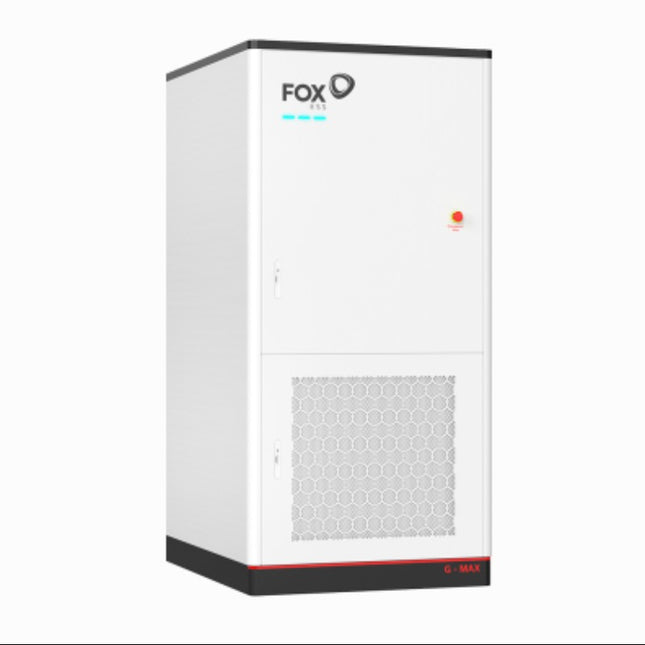

The Fox ESS G-Max Series 100kW All in One comes with 215kWh of storage. It has a compartmentalized design with a preventive alarm system. There is zero power loss due efficient temperature control and frequency variation.  For more information please see the data sheet linked.

Read more less

This 4G-2 dongle allows you to monitor the status and performance of your Fox ESS PV system via the Fox ESS Cloud remote monitoring platform. The 4G-2 dongle is ideal for situations where there is no reliable WiFi or GPRS connection available. System owners and installers can easily keep up-to-date with performance data in real-time, view historic records and monitor system alerts.The 4G connection is valid for 5 years, after the 5-year period, a new dongle is needed.Due to the design of the H3 Pro inverters, the dongle needs to take an active polling approach to acquire data,hence there being two different 4G dongles. Please note this dongle is NOT compatible with the AC3, V, or R series of Fox ESS inverters.

Read more less

The WLan-WW is an intelligent LAN enabled device allowing you to monitor the status and performance of your Fox ESS PV system via the Fox ESS Cloud remote monitoring platform. The WLan-WW is ideal is situations where there is no reliable GPRS or 4G connection available. System owners and installers can easily keep up-to-date with performance data in real-time, view historic records and monitor system alerts. This dongle is NOT compatible with the V or R series Fox ESS inverters.   For more information please seethe data sheet linked.

Read more less

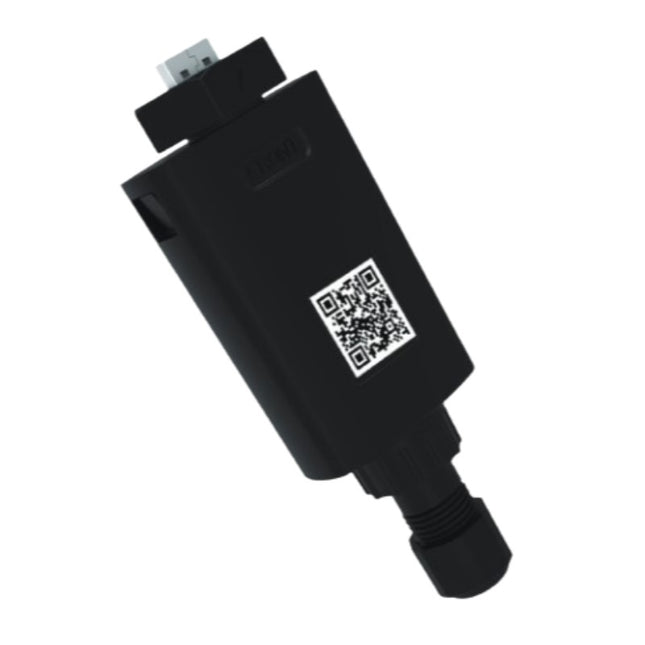

Reliable Remote Monitoring for Your PV System Easily monitor the status and performance of your Fox ESS PV system with the Smart WiLAN. This device is ideal for locations where a reliable WiFi or GPRS connection isn't available. Connect to the Fox ESS Cloud remote monitoring platform to get real-time performance data, view historic records, and receive system alerts. Please note this dongle is ONLY for the V and R series Fox ESS inverters. Key Features: Connects to the Fox ESS Cloud for remote monitoring IP65 Rated, making it suitable for outdoor installation Easy, plug-and-play installation Strong WiFi signal for maximum range Monitor your system 24/7 from anywhere via a user-friendly app Clean and compact design

Read more less

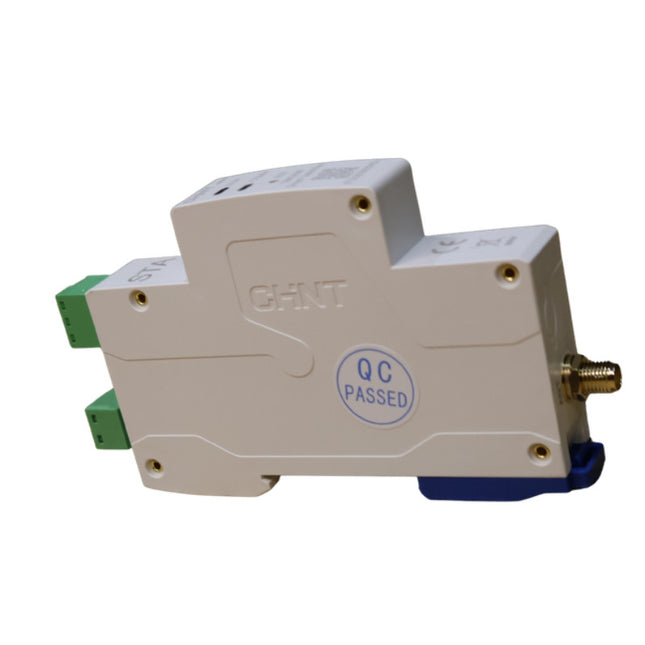

This Smart Gateway Wireless Bridge from Fox allows for a wireless CT connection for single phase inverter installs. This kit includes the sender and receiver kit only. You will also need a 1ph Fox CHINT meter as well. If there is a direct line of sight, and no obstructions, the wireless bridge can communicate up to 300m.The effective range with reduce significantly if there are walls, metal objects, electrical interference, or other environmental factors. This particular metering option is not currently G100 compliant. Where G100 export limitation is required, a wired CT/metering solution must be used.

Read more less

This is a CT clamp for use with Fox ESS range of inverters.100Amp 33mAmp.

Read more less

This is a three phase meter for import/export monitoring and limiting for your Fox ESS system. Comes with 3x CT Clamps.

Read more less

This is a single-phase meter for import/export monitoring and limiting for your Fox ESS system.  CT clamp is included in the meter box.

Read more less

Cable pack for the Fox ESS CQ16 batteries. One needed per stack of CQ16 batteries. This pack contains a 1.88m battery negative cable, a 0.41m power cable to go between battery stacks, and a 0.53m communication cable to go between battery stacks.

Read more less

Battery base for the Fox CQ16 batteries.  One battery base required per battery stack. Each stack can contain up to 4 batteries.

Read more less

The Fox ESS H3 Plus 100kW 3ph Hybrid Inverter offers a state-of-the-art solution for commercial applications, prioritising efficiency and reliability. These inverters support 100% unbalanced three-phase output and can provide more than 6 hours of backup power capability.  Key features include a rapid EPS function with less than 10ms switch time, and an IP65 ingress protection rating for durability. Advanced system monitoring is available via FoxCloud V2.0, along with various communication options. These inverters are compatible with the CQ16 16.07kWh High Voltage stackable batteries. For more information see the data sheet linked.

Read more less

The Fox ESS H3 Plus 75kW 3ph Hybrid Inverter offers a state-of-the-art solution for commercial applications, prioritising efficiency and reliability. These inverters support 100% unbalanced three-phase output and can provide more than 6 hours of backup power capability. Key features include a rapid EPS function with less than 10ms switch time, and an IP65 ingress protection rating for durability. Advanced system monitoring is available via FoxCloud V2.0, along with various communication options. These inverters are compatible with the CQ16 16.07kWh High Voltage stackable batteries. For more info see data sheet linked.

Read more less

The Fox ESS CQ16 control box is the battery management system for the CQ16 battery system.  One CQ box is required for each CQ16 system. There can be between 4 and 15 battery modules per system. The CQ box stacks on top of the first stack of CQ16 modules making installation simple. Properties Operating voltage   101-1000V Max charge current   240A Efficiency   >92% Comms. interface   CAN Charging: 0 -Operating temperature   55°C Discharging: -10 - 55°CDimensions   390 x 235 x 810mm

Read more less

The Fox ESS H3 Plus 50kW 3ph hybrid inverter offers a state-of-the-art solution for commercial applications, prioritising efficiency and reliability. These inverters support 100% unbalanced three-phase output and can provide more than 6 hours of backup power capability. Key features include a rapid EPS function with less than 10ms switch time, and an IP65 ingress protection rating for durability. Advanced system monitoring is available via FoxCloud V2.0, along with various communication options. These inverters are compatible with the CQ16 16.07kWh High Voltage stackable batteries.

Read more less

Part No: FE-H3-8.0-SMART Storage Systems - Hybrid Inverter

Read more less

Part No: FE-H3-PRO-25.0 Storage Systems - Hybrid Inverter Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Supplier Part No: FE-H3-PRO-25.0 Weight: 57.5 kg Rated Power: 25,000 W Min PPT Voltage: 160 V Max PPT Voltage: 1,000 V DC Startup Voltage: 160 V DC Shutdown Voltage: 1,000 V Max Input Voltage: 1,000 V Max DC Power: 37,500 W Max AC Power (5 Minutes): 25,000 W Surge AC Power (1 Second): 27,500 W Max DC Current: 96 A Max DC Inputs: 6 Has DC Fuses: 1 Connector: MC4   Included Connectors: 6 Euro Efficiency: 97.4 % Transformer: N/A MPPT Quantity : 6 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Part No: FE-H3-8.0-CT Storage Systems - Hybrid Inverter FoxESS inverters are configurable with the following batteries: FoxESS inverters are configurable with the following batteries: 1x FE-HV-BMS + (4-8)x FE-HV-2600 1x ECM-2900 (Master) + 2-6x ECS-2900 (Slave) 1x ECM-4100 (Master) + 2-6x ECS-4100 (Slave) 1x ECM-4300 (Master) + 2-6x ECS-4300 (Slave) 1x ECM-4800 (Master) + 2-6x ECS-4800 (Slave) FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo. 3PH Smart Meter included in packaging. PLEASE NOTE: This product requires the following meter for full operation: FE-3PH-METER-CT  Weight: 28 kg Rated Power: 8,000 W Min PPT Voltage: 160 V Max PPT Voltage: 1,000 V DC Startup Voltage: 160 V DC Shutdown Voltage: 160 V Max Input Voltage: 1,000 V Max DC Power: 10,400 W Max AC Power (5 Minutes): 8,000 W Surge AC Power (1 Second): 8,800 W Max DC Current: 26 A Max DC Inputs: 3 Has DC Fuses: 1 Connector: MC4   Included Connectors: 4 Euro Efficiency: 98 % Transformer: N/A MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters. Easy installation - Plug & Play, built-in fuse protection. Maximum yields - Low starting voltage, 97.3% maximum efficiency Maximum flexibility - 3 battery types to choose from, True 3-phase backup power Monitoring - Monitor remotely via app or web portal. FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo. 3PH Smart Meter included in packaging. Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.   Weight: 28 kg Rated Power: 8,000 W Min PPT Voltage: 160 V Max PPT Voltage: 1,000 V DC Startup Voltage: 160 V DC Shutdown Voltage: 160 V Max Input Voltage: 1,000 V Max DC Power: 10,400 W Max AC Power (5 Minutes): 8,000 W Surge AC Power (1 Second): 8,800 W Max DC Current: 26 A Max DC Inputs: 3 Has DC Fuses: 1 Connector: MC4   Included Connectors: 4 Euro Efficiency: 98 % Transformer: N/A MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Part No: FE-T-8.0 Inverters - Main Units Rating: 8,000W Phases: 3 FOX ESS - PV Inverter - T Series - 8.0kW T8-G3 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Supplier Part No: T8 Weight: 17 kg Rated Power: 8,000 W Min PPT Voltage: 140 V Max PPT Voltage: 1,100 V DC Startup Voltage: 140 V DC Shutdown Voltage: 1,100 V Max Input Voltage: 1,100 V Max DC Power: 12,000 W Max AC Power (5 Minutes): 8,000 W Surge AC Power (1 Second): 8,800 W Max DC Current: 14 A Max DC Inputs: 2 Has DC Fuses: 2 Connector: MC4   Included Connectors: 2 Euro Efficiency: 97.8 % Transformer: N/A MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Part No: FE-R-75.0 Inverters - Main Units Rating: 75,000W Phases: 3 FOX ESS - Grid-Tied Inverter - R Series - 75.0kW R75 Supplier Part No:R75Weight:90 kgRated Power:75,000 WMin PPT Voltage:200 VMax PPT Voltage:1,100 VDC Startup Voltage:250 VDC Shutdown Voltage:1,100 VMax Input Voltage:1,100 VMax DC Power:75,000 WMax AC Power (5 Minutes):75,000 WSurge AC Power (1 Second):75,000 WMax DC Current:234 AMax DC Inputs:9Has DC Fuses:0Connector:MC4  Included Connectors:0Euro Efficiency:98.2 %Transformer:HFMPPT Quantity :0Has Integrated DC Switch:No

Read more less

Part No: FE-S3000 Inverters - Main Units Rating: 3,000W Phases: 1 FOX ESS - PV Inverter - S Series - 3.0kW S3000-G2 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Supplier Part No: S3000 Weight: 5.4 kg Rated Power: 3,000 W Min PPT Voltage: 60 V Max PPT Voltage: 500 V DC Startup Voltage: 60 V DC Shutdown Voltage: 500 V Max Input Voltage: 500 V Max DC Power: 1,500 W Max AC Power (5 Minutes): 3,000 W Surge AC Power (1 Second): 3,300 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 1 Connector: MC4   Included Connectors: 1 Euro Efficiency: 96.8 % Transformer: N/A MPPT Quantity : 1 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Part No: FE-T-25.0 Inverters - Main Units Rating: 25,000W Phases: 3 FOX ESS - PV Inverter - T Series - 25.0kW T25-G3 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Supplier Part No: T25 Weight: 21 kg Rated Power: 25,000 W Min PPT Voltage: 140 V Max PPT Voltage: 1,100 V DC Startup Voltage: 140 V DC Shutdown Voltage: 1,100 V Max Input Voltage: 1,100 V Max DC Power: 37,500 W Max AC Power (5 Minutes): 25,000 W Surge AC Power (1 Second): 27,500 W Max DC Current: 28 A Max DC Inputs: 4 Has DC Fuses: 4 Connector: MC4   Included Connectors: 4 Euro Efficiency: 97.8 % Transformer:N/A MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Part No: FE-T-20.0 Inverters - Main Units Rating: 20,000W Phases: 3 FOX ESS - PV Inverter - T Series - 20.0kW T20-G3 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Supplier Part No: T20 Weight: 20 kg Rated Power: 20,000 W Min PPT Voltage: 140 V Max PPT Voltage: 1,100 V DC Startup Voltage: 140 V DC Shutdown Voltage: 1,100 V Max Input Voltage: 1,100 V Max DC Power: 30,000 W Max AC Power (5 Minutes): 20,000 W Surge AC Power (1 Second): 22,000 W Max DC Current: 28 A Max DC Inputs: 4 Has DC Fuses: 4 Connector: MC4   Included Connectors: 4 Euro Efficiency: 97.8 % Transformer: N/A MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Part No: FE-T-15.0 Inverters - Main Units Rating: 15,000W Phases: 3 FOX ESS - PV Inverter - T Series - 15.0kW T15-G3 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Supplier Part No: T15 Weight: 20 kg Rated Power: 15,000 W Min PPT Voltage: 140 V Max PPT Voltage: 1,100 V DC Startup Voltage: 140 V DC Shutdown Voltage: 1,100 V Max Input Voltage: 1,100 V Max DC Power: 22,500 W Max AC Power (5 Minutes): 15,000 W Surge AC Power (1 Second): 16,500 W Max DC Current: 28 A Max DC Inputs: 4 Has DC Fuses: 4 Connector: MC4   Included Connectors: 4 Euro Efficiency: 97.8 % Transformer: N/A MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty:5 years

Read more less

Part No: FE-T-12.0 Inverters - Main Units Rating: 12,000W Phases: 3 FOX ESS - PV Inverter - T Series - 12.0kW T12-G3 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.  Supplier Part No: T12 Weight: 17 kg Rated Power: 12,000 W Min PPT Voltage: 140 V Max PPT Voltage: 1,100 V DC Startup Voltage: 140 V DC Shutdown Voltage: 1,100 V Max Input Voltage: 1,100 V Max DC Power: 18,000 W Max AC Power (5 Minutes): 12,000 W Surge AC Power (1 Second): 13,200 W Max DC Current: 14 A Max DC Inputs: 2 Has DC Fuses: 2 Connector: MC4   Included Connectors: 2 Euro Efficiency: 97.8 % Transformer: N/A MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

Part No: FE-R-110.0 Inverters - Main Units Rating: 110,000W FOX ESS - Grid-Tied Inverter - R Series - 110.0kW R110 Supplier Part No:R110Weight:90 kgRated Power:110,000 W

Read more less

Part No: FE-R-100.0 Inverters - Main Units Rating: 100,000W FOX ESS - Grid-Tied Inverter - R Series - 100.0kW R100 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.   Supplier Part No: R100 Weight: 90 kg Rated Power: 100,000 W

Read more less

Part No: FE-S700 Inverters - Main Units Rating: 700W Phases: 1 FOX ESS - PV Inverter - S Series - 0.7kW S700-G2 Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Supplier Part No: S700 Weight: 5.4 kg Rated Power: 700 W Min PPT Voltage: 60 V Max PPT Voltage: 500 V DC Startup Voltage: 60 V DC Shutdown Voltage: 500 V Max Input Voltage: 500 V Max DC Power: 1,050 W Max AC Power (5 Minutes): 700 W Surge AC Power (1 Second): 800 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 1 Connector: MC4   Included Connectors: 1 Euro Efficiency: 96.5 % Transformer: N/A MPPT Quantity : 1 Has Integrated DC Switch: Yes Warranty: 5 years
