Renusol GmbH based in Cologne (Germany) and is among the fastest growing businesses on the European market for PV mounting systems. The manufacturer of high-quality mounting solutions is successful with its 4 core mounting options, VarioSole, MetaSole, InterSole and ConSole in many European countries.
Renusol Mounting
Renusol Middle Clamp+ 30 - 50mm Black
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£2.37 Exc. VAT
£2.84 Inc. VAT
Renusol End Clamp+ 30 - 50mm Black
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£2.37 Exc. VAT
£2.84 Inc. VAT
Renusol Rear grip clamp for CS
The Rear grip clamp for CS (REN-420023) + enables the mounting of solar modules which do not have mounting holes in their frames on the ConSole. PV-Modules without mounting holes or modules which have the module holes on unfavourable positions (e.g. 72 cell modules) can be mounted with this item. This was not possible before with the CS+ solution. Due to that the classical (iconic) system Renusol CS+ can be used in even more cases.
£2.27 Exc. VAT
£2.72 Inc. VAT
Renusol ConSole+ (incl. Mounting material and U-Profile)
The ConSole+ provides an angle of 15 degrees. The ConSole+ assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees without roof penetration. Most commercially available framed standard PV modules fit the ConSole+. The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual. Details: Colour: black Suitable for flat-roof- and ground mounting installations For framed PV-modules Technical Data: Material: HDPE, Aluminium and stainless steel Weight: 7,900 kg Max# module length: 1550-2400 mm Holes gap - width: 895-1014 mm Holes gap - length: 690-1180 mm Other Contents: 1 x 500075 ConSole+ 2 x 400005 ConSole U-Profile 1035 mm 4 x 900027 Hexag# screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag# nut DIN985-M6-A2 4 x 900106 ConSole Clip 4 x 900115 Hexag# screw DIN7504-ST5,5x25-A2-SW8
£76.88 Exc. VAT
£92.26 Inc. VAT
Renusol NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+ ( x2 )
This rail enables modules of different widths to be mounted on the ConSole+. 2 x rail; 4 x hexagon head screw DIN933-M6x20 A2-70, 4 x washer DIN9021-6,4-A2, 4 x self-locking hexagon nut DIN985-M6-A2 Material: Aluminum, stainless steel Weight: 0.127 kg Dimensions: 175 x 25 x 12 mm (2x)
£7.12 Exc. VAT
£8.54 Inc. VAT

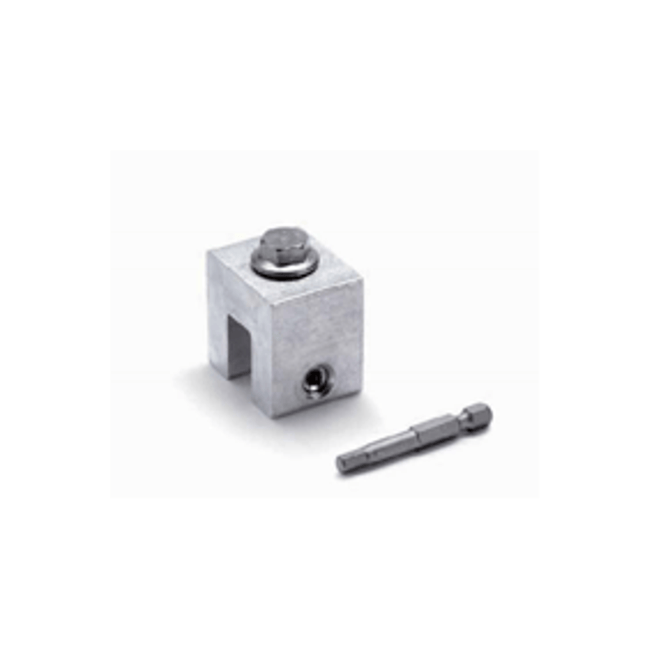

Renusol Renusol S5 Seam Clamp S-Mini
UK only: These clamps are now MCS012 certified with Renusol Variosole + Measures: 38x38x30 mm Weight: 0,111 kg Set is not pre-assembled Material: Aluminum Applicable with: Sheet metal Roof decking: Standing seam indutrial roofi Drive: Width across flats 13
£6.53 Exc. VAT
£7.84 Inc. VAT
Renusol MetaSole+ PORTRAIT rail 400mm long
SHORT 400mm RAIL Material saving solar installation on trapezoidal sheet. Without continuous rails. Suitable for maximum 370mm distance between centres of raised trapezoidal ridges. VERTICAL PV MODULE ORIENTATION PV modules with a frame height of 30 to 50 mm are attached to the MS + P mounting system in portrait (standing) on the trapezoidal sheet. INSTALLATION WITHOUT PILOT DRILLING Self-tapping screws fix the MS+P PV mounting system directly to the trapezoidal sheet. FOR TRAPEZOIDAL STEEL AND ALUMINUM METAL SHEET Readymade kits are suitable for the installation of PV systems on trapezoidal sheet steel and / or aluminum in various thicknesses. Metasole Portrait kit: consist of 1x 400mm long rail and 4x REN-400301
£6.35 Exc. VAT
£7.62 Inc. VAT
Renusol Renusol S5 Seam Clamp E-Mini
Designer note: The Renusol seam clamps are part of the S5 range. You can see more details on manufacturers website HERE UK only: These clamps are now MCS012 certified with Renusol Variosole + Please confirm that you have the correct measurements to ensure roof profile compatibility as per datasheet. The seam clamp has a max. diameter allowance of 7.6mm and max. height of 15mm.
£5.88 Exc. VAT
£7.06 Inc. VAT
Renusol Solar Fastener for steel substructure 150mm/50mm
Technical Data Applicational Data Material Dimensions Weight Compatible Thread length: 150/50 Hexagon socket 5 mm with building approval Z-14.4 - 555 Setscrew: M10 Clamping range: 80 - 130 mm pre-drilling necessary Stainless steel 8,4 x 206 mm 0,093 kg 420012, 420014, 420130, 420131, 900193, 900205 - 900222 REN900184, Renusol, PV Mounting, Roof Anchor- Hanger Bolt Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system. Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system. REN-900184
£5.75 Exc. VAT
£6.90 Inc. VAT
Renusol Aluminium U-Profile 1035 mm ConSole 4.2, 5.2,6.2, CS+, single
Details: Colour: silber / grey ConSole 4.2, 5.2, 6.2 and CS+ Compatible with: 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium EN-AW-6063 T6 Weight: 0,203 kg Material thicknesss 2 mm Two required per console
£5.80 Exc. VAT
£6.96 Inc. VAT
Renusol Solar Fastener for steel substructure 125mm/50mm
Technical Data Applicational Data Material Dimensions Weight Compatible Thread length: 125/50; Hexagon socket 5 mm; with building approval Z-14.4 - 555; Setscrew: M10 Clamping range: 60 - 105 mm pre-drilling necessary Stainless steel 8,4 x 181 mm 0,089 kg 420012, 420014, 420130, 420131, 900193, 900205 - 900222 Keywords: REN900183, Renusol, PV Mounting, Roof Anchor- Hanger Bolt
£5.67 Exc. VAT
£6.80 Inc. VAT
Renusol Solar Fastener for steel substructure 100mm/50mm
Solar Fastener for steel substructure 100mm/50mm
£5.52 Exc. VAT
£6.62 Inc. VAT
Renusol MetaSole+ PORTRAIT rail 350mm long
SHORT 350mm RAIL Material saving solar installation on trapezoidal sheet. Without continuous rails. Suitable for maximum 320mm distance between centres of raised trapezoidal ridges. VERTICAL PV MODULE ORIENTATION PV modules with a frame height of 30 to 50 mm are attached to the MS + P mounting system in portrait (standing) on the trapezoidal sheet. INSTALLATION WITHOUT PILOT DRILLING Self-tapping screws fix the MS+P PV mounting system directly to the trapezoidal sheet. FOR TRAPEZOIDAL STEEL AND ALUMINUM METAL SHEET Readymade kits are suitable for the installation of PV systems on trapezoidal sheet steel and / or aluminum in various thicknesses. Metasole Portrait kit: consist of 1x 350mm long rail, 4x REN-400301 screws : M10 x 200 (Offset connection)
£5.46 Exc. VAT
£6.55 Inc. VAT
Renusol Hanger bolt M10 x 200 offset connection (for Timber Purlins)
Material: stainless steel; aluminium Suitable for Timber Purlins ONLY. Certification: MCS012 IK0197/04; TÜV ID: 1111212485; DIBt Z-14.4-602 Screw Ø: M10; 9.0 mm Thread length: 65.0 mm Weight: 0,249 kg Adjustment range: 81 mm Dimensions: M10 x 200 (Offset connection)
£4.83 Exc. VAT
£5.80 Inc. VAT
Renusol Mounting material for ConSole 4.1, 4.2, 5.2, 6.2, CS+
Details: ConSole 4.1, 4.2, 5.2, 6.2 and CS+ Compatible with: 520041-K, 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium and stainless steel Other Contents: 1 x 900115 Hexag. screw DIN7504-ST5,5x25-A2-SW8 4 x 900027 Hexag. screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag. nut DIN985-M6-A2 4 x 900106 ConSole Clip
£4.13 Exc. VAT
£4.96 Inc. VAT
Renusol VarioSole+ Rail connector for rail 50 x 37 mm.
Technical Data: Dimensions: 195 x 27,9 x 38,8mm Weight: 0.193kg Rail Length: 195,0mm Material: Aluminium Certification: TUV ID:48970; MCS012 IK0197/03 Useable with: VS+ Mounting rail 50 x 37mm
£4.11 Exc. VAT
£4.93 Inc. VAT
Renusol VarioSole+ Rail connector for rail 41 x 35 mm
Technical Data: Dimensions: 195 x 24,1 x 30 Weight: 0.151kg Rail Length: 195,0mm Material: Aluminium Certification: TUV ID:48970; MCS012 IK0197/03 Useable with: VS+ Mounting rail 41 x 35mm
£4.08 Exc. VAT
£4.90 Inc. VAT
Renusol MetaSole+ metal sheet thickness with 2 x 6.3x 38 screws.
For use on pitched roofs in landscape with the MetaSole and MS+ range.
£3.80 Exc. VAT
£4.56 Inc. VAT
Renusol MetaSole+ Sheet thickness: FE 0.50-1.50 mm, AL 0.5-2.00mm 2 x screws included
Renusol Metasole mounting system for trapezoidal/IBR and corrugated sheet metal roofs. This roof anchor is suitable for landscape panel mounting solutions. The roof anchor is suitable for PV systems with framed pv-modules from 30 to 50 mm frame height. Installation is made directly into the metal roofing using self-tapping and thread-forming screws that come as standard with the mounting bracket. If more panel-to-roof clearance is required, the following roof anchor can be used as an alternative: REN-420423 2x mounting screws included (REN-400301) Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
£3.80 Exc. VAT
£4.56 Inc. VAT
Renusol RS1 Universal End and Mid Clamp 30 - 50mm Black ONE FOR ALL
This innovative masterpiece makes your next PV-project a whole lot easier. The RS1 works as mid- and end clamp. It is heigth adjustable and secures any framed PV panel starting from 30 mm up to 50 mm height. Twisting the RS1‘s head changes the functionality from end- to mid-clamp. Installation and positioning works one handed. At the same time it minimizes needed storage space and saves administrational costs in item management. The RS1 is a real time saver and generates savings over your entire value chain. Technical Data: Dimensions: 35x36.5x60 Weight: 0.083kg Set: complete pre-assembled set Material: Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£3.80 Exc. VAT
£4.56 Inc. VAT
Renusol FS Pro adapter LS
£3.18 Exc. VAT
£3.82 Inc. VAT
Renusol Bracket IFP M8/M10
£3.07 Exc. VAT
£3.68 Inc. VAT
Renusol FS Pro 10-EW Eave support
R500232 Material: Aluminum Weight: 0.190 kg Dimensions: 140 x 65 x 48 mm Angle of inclination: 10° Assembly variant: East-West
£2.58 Exc. VAT
£3.10 Inc. VAT
Renusol RS1 Universal End and Mid Clamp 30 - 50mm Silver ONE FOR ALL
This innovative masterpiece makes your next PV-project a whole lot easier. The RS1 works as mid- and end clamp. It is heigth adjustable and secures any framed PV panel starting from 30 mm up to 50 mm height. Twisting the RS1‘s head changes the functionality from end- to mid-clamp. Installation and positioning works one handed. At the same time it minimizes needed storage space and saves administrational costs in item management. The RS1 is a real time saver and generates savings over your entire value chain. Technical Data: Dimensions: 35x36.5x60 Weight: 0.083kg Set: complete pre-assembled set Material: Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£2.44 Exc. VAT
£2.93 Inc. VAT
Renusol VarioSole Bracket M10 offset connection
Technical Data: Material: Aluminium EN-AW-6063 T6
£2.43 Exc. VAT
£2.92 Inc. VAT
Renusol VarioSole Bracket M10
Description Material Dimensions Weight Compatible Components Identical functionality given with M12 bracket Aluminium, Stainless steel 40 x 38 x 85 mm 0,098 kg 900181 - 900192, 400011, 400081, 400094, 400230, 420015, 420019, 420020, 430009, 490018, 900138, 900163 1 x Bracket M10 1 x Hammerhead bolt M8 x 25 1 x Hexagon Nut w. serration DIN6923 - M8 A2-70
£2.43 Exc. VAT
£2.92 Inc. VAT
Renusol VarioSole Bracket M12
Technical Data: Material: Aluminium EN-AW-6063 T6 Other Contents: 1 x 400012 Bracket M12 1 x 900007 Hammerhead bolt M8 x 25 1 x 900001 Hexag. nut DIN6923-M8-A2-70 with FL & SZ
£2.34 Exc. VAT
£2.81 Inc. VAT
Renusol FS Pro Streamliner bracket
R500241 Material: Aluminum Weight: 0.147 kg Dimensions: 120 x 90 x 65 mm
£2.16 Exc. VAT
£2.59 Inc. VAT
Renusol FS Pro Cable tray Al 300
£2.12 Exc. VAT
£2.54 Inc. VAT
Renusol FS Pro Ballast profile connector
R500251 Material: Aluminum Weight: 0.144 kg Dimensions: 300 x 43 x 19 mm
£2.03 Exc. VAT
£2.44 Inc. VAT
Renusol FS Pro 18-S Streamliner support
R500243 Material: Aluminum Weight: 0.116 kg Dimensions: 102 x 89 x 65 mm
£1.94 Exc. VAT
£2.33 Inc. VAT
Renusol Renusol Cross rail connector
The Renusol Cross-Rail Connector is used is pairs to attach perpendicular lengths of Renusol rail, or rail to TriSole frames. A pair of Cross-Rail Connector are attached either side of the upper rail. The upper rail should always be of 50mm x 37mm type because it has a small ridge along a third face to allow a connector to clamp on, whereas the 41 x 35 does not. Use any of the following rail partnos: (Silver) REN-500502, REN-500505 or (black) REN-400502-B, REN-400505-B. Technical Data: Dimensions: 35x35x65 Weight: 0.066kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; MCS012 IK0197 Useable with: VS+ mounting rail 50x37; TS+ Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£1.94 Exc. VAT
£2.33 Inc. VAT
Renusol FS Pro 10-S Eave support
R500231 Material: Aluminum Weight: 0.121 kg Dimensions: 87 x 65 x 49 mm
£1.85 Exc. VAT
£2.22 Inc. VAT
Renusol Middle Clamp+ 30 - 50mm Silver
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£1.85 Exc. VAT
£2.22 Inc. VAT
Renusol End Clamp+ 30 - 50mm Silver
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£1.85 Exc. VAT
£2.22 Inc. VAT
Renusol Renusol MetaSole Corrugated Roof Adaptor
Corrugated adaptor for Renusol MetaSole. This part allows MetaSole designs to be compatble with corrugated metal roof areas and enables your system to be attached to the roof with self-tapping screws, rather than drilling through the sheet into the substructure with hanger bolts. The added bonus is that no mounting rail is required, which reduces the cost of the mounting dramaticdally. Simple, secure and supremely affordable. It must be used in conjunction with the MetaSole sheets REN-420402.
£1.73 Exc. VAT
£2.08 Inc. VAT
Renusol VarioSole + End Cap 50X37 rail - RIGHT/LEFT Grey (1 pair)
Technical Data Material Dimensions Weight Compatible Components Average thicknesss 2,00 mm Colour: grey PPH 1102 50 x 37 x 15 mm 0,007 kg 400011, 400081, 400094, 430009, 490018, 900138, 900163 1 x End cap left (grey) 1 x End cap right (grey) Keywords: REN920044, Renusol, PV Mounting, Rail End Caps
£1.54 Exc. VAT
£1.85 Inc. VAT
Renusol VarioSole + End Cap 50X37 rail - RIGHT/LEFT Black (1 pair)
Technical Data Material Dimensions Weight Compatible Components Average thicknesss 2,00 mm Coulour: black PPH 1102 50 x 37 x 15 mm 0,007 kg 1 x End cap left (black) 1 x End cap right
£1.54 Exc. VAT
£1.85 Inc. VAT
Renusol Renusol Attachment for fixing Optimisers/MicroInverters
Attachement to fix optimiser/microinverter to Renusol Variosole + rail or Metasole plates.
£1.36 Exc. VAT
£1.63 Inc. VAT
Renusol FS Pro clip Side deflector
£1.22 Exc. VAT
£1.46 Inc. VAT
Renusol FS Pro Roof protection pad 300
£1.18 Exc. VAT
£1.42 Inc. VAT
Renusol FS Pro Ballast profile support
R500252 Material: Aluminum Weight: 0.053 kg Dimensions: 65 x 54 x 37 mm
£0.89 Exc. VAT
£1.07 Inc. VAT
Renusol 5-mm spacer plate
5-mm spacer plate
£0.61 Exc. VAT
£0.73 Inc. VAT
Renusol VarioSole + End Cap 41X35 rail Single - Grey
Technical Data Material Dimensions Weight Compatible Components Average thicknesss 2,00 mm Colour: grey 41 x 35 x 15 mm 0,007 kg 400511, 400511-B, 400512, 400512-B, 400513, 1 x End cap (grey)
£0.79 Exc. VAT
£0.95 Inc. VAT
Renusol VarioSole + End Cap 41x35 rail Single - Black
End cap for VarioSole + 41x35 rail, black
£0.79 Exc. VAT
£0.95 Inc. VAT
Renusol Self drilling screw for Al 0,50-1,25 mm or steel 0,40-1,25 mm
SW8 5.5X25 E16 8mm hex head Steel thickness (0.50 -1.25mm) Aluminium thickness (0.40 - 1.25mm) Keywords: REN400301, Renusol, PV Mounting, Roof Anchor- Trapezoidal
£0.77 Exc. VAT
£0.92 Inc. VAT
Renusol P-Clip Potential Equalization Clip
Potential equalization clip for a conductive connection between solar modules and substructure.
£0.65 Exc. VAT
£0.78 Inc. VAT
Renusol Storm washer for corrugated sheet R24mm/37mm
Technical Data Applicational Data Material Dimensions Weight Compatible EPDM pre-assembled Port diameter 7.3 mm Radius: 24 mm Aluminium EPDM 45 x 40 x 12 mm 0,008 kg Solar fasteners
£0.65 Exc. VAT
£0.78 Inc. VAT
