Renusol Flat Roof Mounting

8 products

  • Rear grip clamp for CS

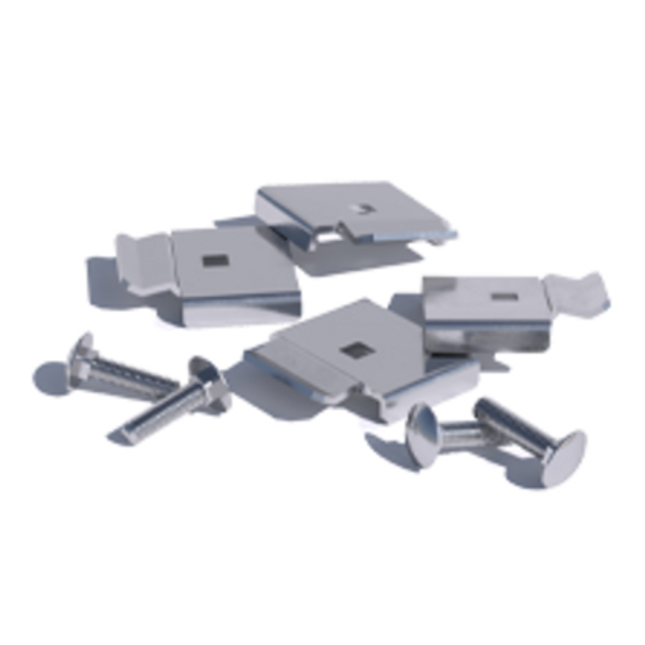

    Renusol Rear grip clamp for CS

    The Rear grip clamp for CS (REN-420023) + enables the mounting of solar modules which do not have mounting holes in their frames on the ConSole. PV-Modules without mounting holes or modules which have the module holes on unfavourable positions (e.g. 72 cell modules) can be mounted with this item. This was not possible before with the CS+ solution. Due to that the classical (iconic) system Renusol CS+ can be used in even more cases.

    £2.27 Exc. VAT

    £2.72 Inc. VAT

  • NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+ ( x2 )

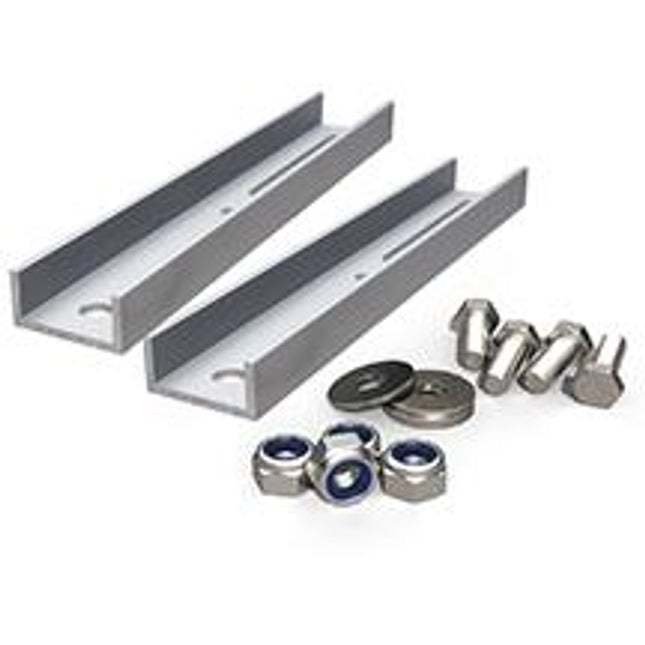

    Renusol NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+ ( x2 )

    This rail enables modules of different widths to be mounted on the ConSole+. 2 x rail; 4 x hexagon head screw DIN933-M6x20 A2-70, 4 x washer DIN9021-6,4-A2, 4 x self-locking hexagon nut DIN985-M6-A2 Material: Aluminum, stainless steel Weight: 0.127 kg Dimensions: 175 x 25 x 12 mm (2x)

    £7.12 Exc. VAT

    £8.54 Inc. VAT

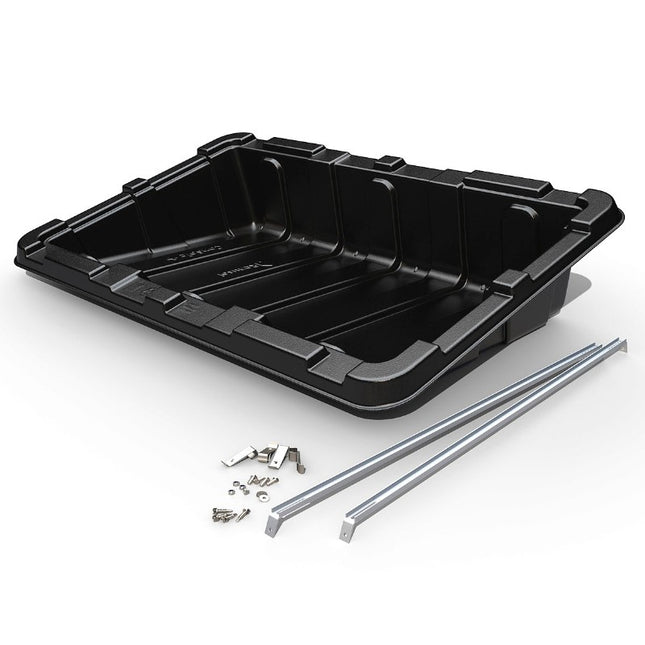

  • ConSole+ (incl. Mounting material and U-Profile)

    Renusol ConSole+ (incl. Mounting material and U-Profile)

    The ConSole+ provides an angle of 15 degrees. The ConSole+ assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees without roof penetration. Most commercially available framed standard PV modules fit the ConSole+. The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual. Details: Colour: black Suitable for flat-roof- and ground mounting installations For framed PV-modules Technical Data: Material: HDPE, Aluminium and stainless steel Weight: 7,900 kg Max# module length: 1550-2400 mm Holes gap - width: 895-1014 mm Holes gap - length: 690-1180 mm Other Contents: 1 x 500075 ConSole+ 2 x 400005 ConSole U-Profile 1035 mm 4 x 900027 Hexag# screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag# nut DIN985-M6-A2 4 x 900106 ConSole Clip 4 x 900115 Hexag# screw DIN7504-ST5,5x25-A2-SW8

    £76.88 Exc. VAT

    £92.26 Inc. VAT

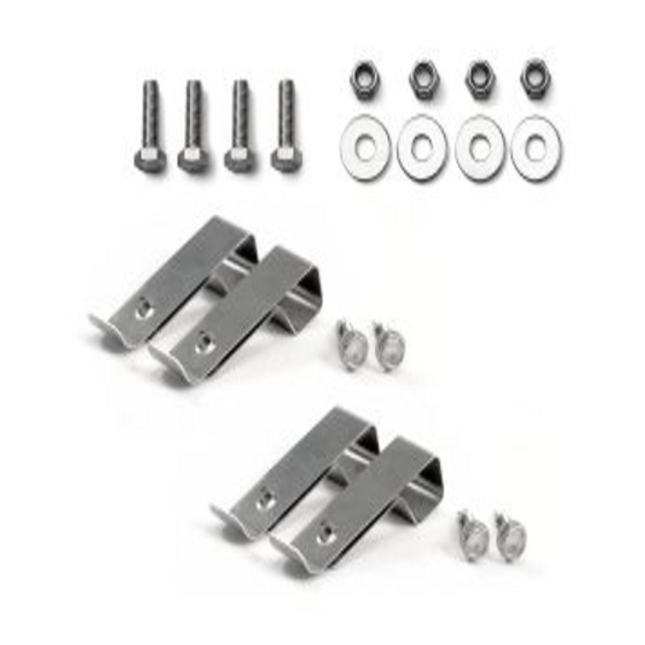

  • Mounting material for ConSole 4.1, 4.2, 5.2, 6.2, CS+

    Renusol Mounting material for ConSole 4.1, 4.2, 5.2, 6.2, CS+

    Details: ConSole 4.1, 4.2, 5.2, 6.2 and CS+ Compatible with: 520041-K, 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium and stainless steel Other Contents: 1 x 900115 Hexag. screw DIN7504-ST5,5x25-A2-SW8 4 x 900027 Hexag. screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag. nut DIN985-M6-A2 4 x 900106 ConSole Clip

    £4.13 Exc. VAT

    £4.96 Inc. VAT

  • Aluminium U-Profile 1035 mm ConSole 4.2, 5.2,6.2, CS+, single

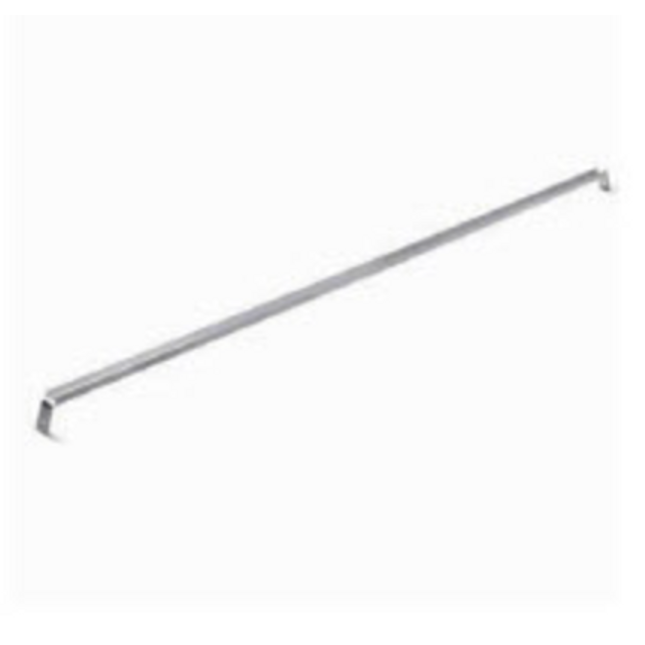

    Renusol Aluminium U-Profile 1035 mm ConSole 4.2, 5.2,6.2, CS+, single

    Details: Colour: silber / grey ConSole 4.2, 5.2, 6.2 and CS+ Compatible with: 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium EN-AW-6063 T6 Weight: 0,203 kg Material thicknesss 2 mm   Two required per console

    £5.80 Exc. VAT

    £6.96 Inc. VAT

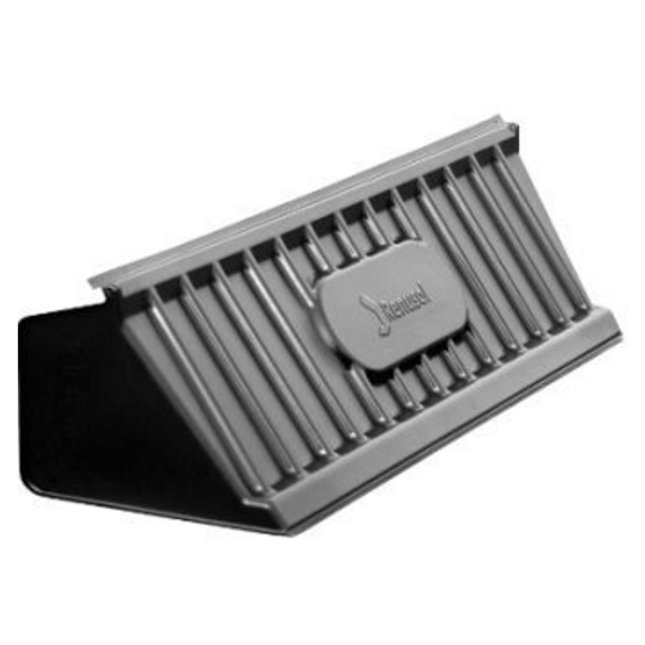

  • ConSole Streamliner+

    Renusol ConSole Streamliner+

    Description Material Dimensions Weight Compatible Components To be used on the back row of an installation of ConSole + to reduce the windload and thus ballast required HDPE 1533 x 448 x 361 8,406 kg 520075-K 1 x Streamliner+ 9 x Hexag. screw DIN7504-ST5,5x25-A2-SW8 Keywords: REN520076, Renusol, PV Mounting, Flat Roof Tray

    £35.44 Exc. VAT

    £42.53 Inc. VAT

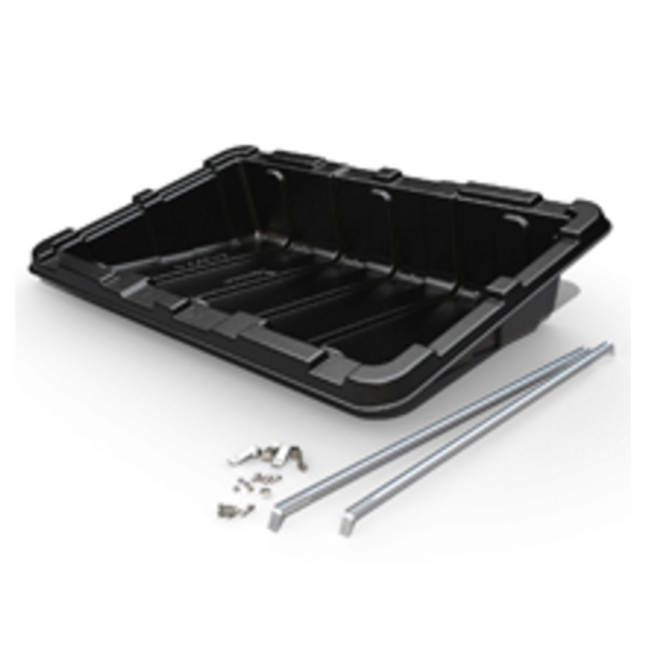

  • ConSole+ Ground Mount

    Renusol ConSole+ Ground Mount

    This part is made up of the following items: 1 x REN-520075-K ConSole+ (incl. Mounting material and U-Profile)   The ConSole+ provides an angle of 15 degrees. The ConSole+ assembly system is the ideal solution for installing PV modules on the ground, especially ground that is unstable, for example landfill areas. Most commercially available framed standard PV modules fit the ConSole+. The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual.

    £76.88 Exc. VAT

    £92.26 Inc. VAT

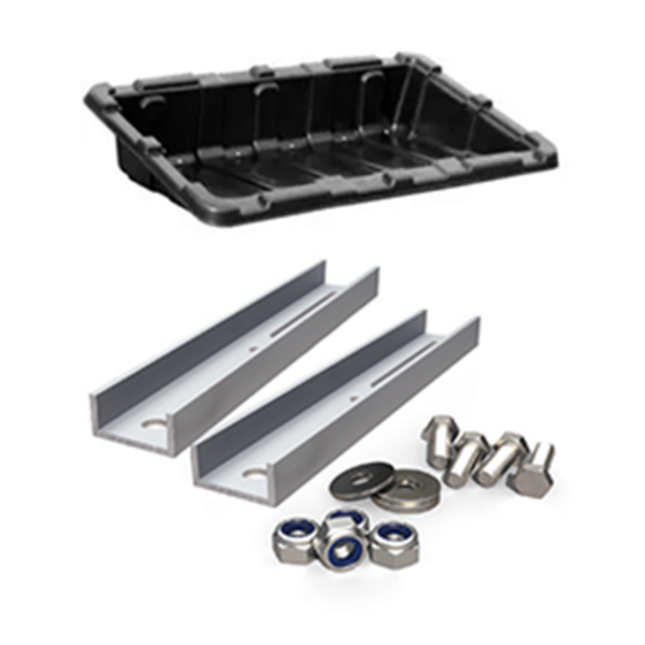

  • 520075-K Console with Elongation Rail 460196

    Renusol 520075-K Console with Elongation Rail 460196

    This part is made up of the following items: 1 x REN-520075-K ConSole+ (incl. Mounting material and U-Profile)   1 x REN-460196 NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+ ( x2 )   REN-520075-K Flat Tray Consoles with the Elongation Rail REN-460196

    £84.12 Exc. VAT

    £100.94 Inc. VAT

The Renusol East-West facing mounting system for framed PV panels offers an exceptionally high level of coverage on flat roofs. The layout also spreads the peak generation more evenly throughout the day providing higher power in the morning and evening than a typical South facing array.

Renusol GmbH based in Cologne (Germany) and is among the fastest  growing businesses on the European market for PV mounting systems. The manufacturer of high-quality mounting solutions is successful with its 4 core mounting options, VarioSole, MetaSole, InterSole and ConSole in many European countries.
