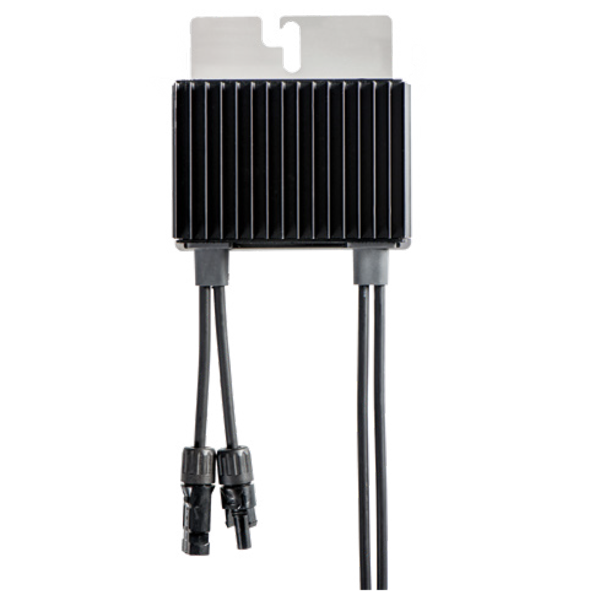

SolarEdge P1100 Optimizer 1100W MC4 2 x high power or bi-facial modules

PV Power optimization at the module-level

Short Input Cable verison.

The most cost effective solution for commercial and large field installations

• Specifically designed to work with solaredge inverters
• Up to 25% more energy
• Superior efficiency (99.5%)
• Balance of System cost reduction; 50% less cables, fuses and combinver boxes, over 2x longer strings lengths possible.
• Fast installation with a single bolt
• Advanced maintenance with module-level monitoring
• Module-level voltage shutdown for installer and firefighter safety
• Use with two PV modules connected in series or in parallel

This optimiser is compatible with three phase inverters SE25K & larger.

Input length: 0.16m

Output length: 2.4m

Supplier Part No: P1100-4RM4MBT

Weight: 1.06 kg

Min PPT Voltage: 0 V

Max PPT Voltage: 65 V

DC Startup Voltage: 13 V

DC Shutdown Voltage: 13 V

Max Input Voltage: 125 V

Max DC Power: 1,100 W

Max AC Power (5 Minutes): 0 W

Surge AC Power (1 Second): 0 W

Max DC Current: 15 A

Max DC Inputs: 2

Has DC Fuses: 0

Connector: MC4

Included Connectors: 2

Euro Efficiency: 98.6 %

Transformer: N/A

MPPT Quantity : 1

Has Integrated DC Switch: No

Warranty: 25 years
