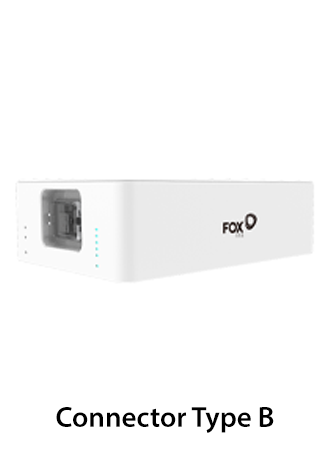

Fox ECS - High Voltage Battery (Master)

ECM2900

ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.16 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

• 2.88kWh Capacity
• Scalable to 20.16kWh
• 90% Depth of Discharge
• Wide Temperature Tolerence
• Easy Installation
• CAN/RS485 Communication
• High Voltage

Supplier Part No:

FE-HV-ECM-2900

Weight:

37.95 kg

Battery Type:

Lithium Ion

Nominal Energy:

2880 Wh

Depth of discharge:

90.00 %

Voltage:

52 V

Continuous Discharge Rate (Normal Use):

1440 W

Maximum Discharge Rate (5 Minutes):

2880 W

Surge Discharge Rate (15 Seconds):

3000 W

Maximum Charge Rate (5 Minutes):

2880 W
