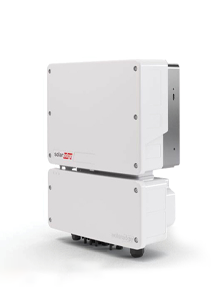

SolarEdge Home Hub Inverter for Storage and Backup Application

SE3680H - 3.68kW

Requires the SolarEdge Backup Interface (SE-SBI-1PH) for the Backup funciton to work.

• Record-breaking 99% weighted efficiency with up to 200% DC oversizing
• Small, lightweight, and easy to install
• Advanced safety features with integrated arc fault protection
• Enables module-level monitoring and full visibility of battery status, PV production, and self-consumption data
• A scalable solution that supports future homeowner needs through easy connection to a growing ecosystem of products

12-25 Year Warranty

Supplier Part No: SE3680H-RWBMNBF54

Weight: 12 kg

Rated Power: 3,680 W

Min PPT Voltage: 380 V

Max PPT Voltage: 480 V

DC Startup Voltage: 0 V

DC Shutdown Voltage: 0 V

Max Input Voltage: 480 V

Max DC Power: 7,360 W

Max AC Power (5 Minutes): 3,680 W

Surge AC Power (1 Second): 3,680 W

Max DC Current: 10.5 A

Max DC Inputs: 2

Has DC Fuses: 0

Connector: MC4

Included Connectors: 0

Euro Efficiency: 98.8 %

Transformer: None

MPPT Quantity : 2

Has Integrated DC Switch: No
