SOL-100.0-3PH-5G-DC

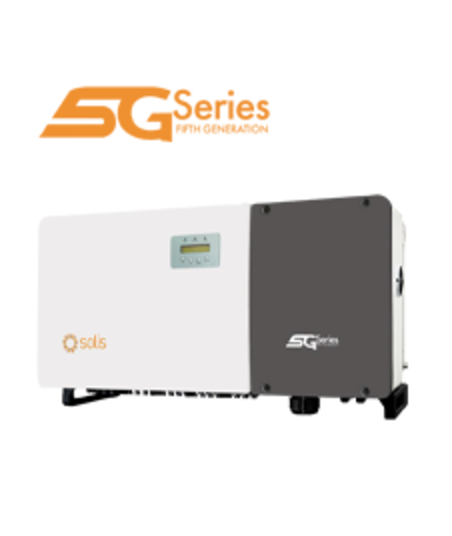

Solis 100kW 5G 3 Phase 10x MPPT – DC

Product Features

Max. 13A per string (26A per MPPT), 150% DC overloading capability
10 individual MPPT, lower mismatch loss
Efficient logic algorithm, over 99% max. Efficiency
String monitoring, shorter O&M time
Remote & local intelligent IV scan function
Leakage current repression technology
Volt-watt work mode integrated
DC input reverse alarm
Optional anti-PID function integrated
Reactive power compensation function
Integrated DC switch

£4,014.92

£4,817.90 INC. VAT

Login or register for trade discounts

In stock

Fast shipping

Collection available More info

Overview

Product Features

Max. 13A per string (26A per MPPT), 150% DC overloading capability
10 individual MPPT, lower mismatch loss
Efficient logic algorithm, over 99% max. Efficiency
String monitoring, shorter O&M time
Remote & local intelligent IV scan function
Leakage current repression technology
Volt-watt work mode integrated
DC input reverse alarm
Optional anti-PID function integrated
Reactive power compensation function
Integrated DC switch

Part No: SOL-100.0-3PH-5G-DC Inverters - Main Units

Rating: 100,000W
Phases: 3

Solis-100K-5G 3phase Inverter

Supplier Part No:SOL-100-3PH-5G-DCWeight:100 kgRated Power:100,000 WMin PPT Voltage:180 VMax PPT Voltage:1,000 VDC Startup Voltage:195 VDC Shutdown Voltage:180 VMax Input Voltage:1,000 VMax DC Power:150,000 WMax AC Power (5 Minutes):100,000 WSurge AC Power (1 Second):100,000 WMax DC Current:260 AMax DC Inputs:20Has DC Fuses:0Connector:MC4 Included Connectors:32Euro Efficiency:98.3 %Transformer:NoneMPPT Quantity :10Has Integrated DC Switch:YesWarranty:5 years
