Stand Alone BESS (Battery Energy Storage System)

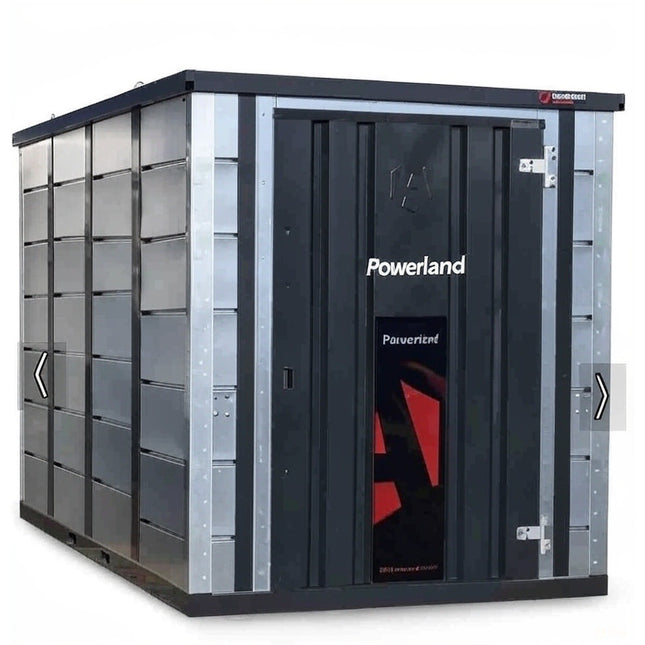

  50kWh Battery Storage Container  (20ft) with 30kWh Inverter  & 20kva Generator (3-phase) Overview The 50kWh Battery Storage Container is a tailored energy solution designed to provide reliable and efficient power. This Powerbox solution ensures a sustainable and uninterrupted power supply. Key Features • Output Capacity: 30kWh 3-phase • Generator: Perkins or Cummins powered 20kVA 3-phase  • 50kwh Battery Storage powered by Duracell • Scalability: you can add up to 100kWh of additional batteries.  • Durability: Built with robust materials to withstand harsh environments • Smart Management: Integrated with advanced software for real-time monitoring and management (remote access to be disabled)  Environmental Specifications Recommended range is -20°C to 55°C (-4°F to 131°F). Occasional use at higher temperatures is permissible, but prolonged exposure above 45°C (113°F) can accelerate battery degradation, which is not covered under warranty. The battery operates at temperatures as low as -10°C without internal heaters, preserving lifecycle Physical Characteristics • Dimensions: 20ft Container (x 8ft) • Weight: TBC dependent upon final spec. • Enclosure Material: High-strength steel • Ingress Protection: IP67 Safety Features • Overcharge Protection: Prevents battery damage due to overcharging • Over-discharge Protection: Ensures battery longevity by preventing excessive discharge • Isolation Protection: Electrical isolation to prevent short circuits Monitoring and Control • Battery Management System (BMS): Monitors and manages battery health, temperature, and performance • Remote Monitoring: Real-time monitoring and control via a user-friendly mobile app • Data Logging: Comprehensive data logging for performance analysis and maintenance Applications The Battery Storage Container is versatile and can be used in various applications, including: • Residential Energy Storage: Store excess energy generated by solar panels for use during peak hours or power outages • Commercial Energy Storage: Provide backup power for businesses and reduce energy costs by managing peak demand • Renewable Energy Integration: Enhance the efficiency of renewable energy systems by storing and supplying power as needed • Grid Support: Support grid stability by providing ancillary services such as frequency regulation and load balancing • Off-grid Solutions: Ideal for remote locations where grid power is unavailable or unreliable Installation and Maintenance  • Site Assessment: A comprehensive site assessment is conducted to determine the optimal location for the container. • Foundation: Requires a solid and level foundation to ensure stability • Electrical Connections: Connected to PV Supply by certified electricians • Regular Inspections: Scheduled inspections to ensure the system is operating efficiently • Software Updates: Periodic updates to the Battery Management System and monitoring software Warranty and Support • Warranty Period: 10-year warranty covering all major components • Customer Support: 24/7 customer support for troubleshooting and technical assistance • Service Contracts: Optional service contracts for ongoing maintenance and support Conclusion The Powerbox Battery Storage Container is a cutting-edge solution for efficient and reliable energy storage. With its robust design, advanced features, and versatile applications, it is an ideal choice for anyone looking to enhance their energy management and sustainability efforts.

Read more less

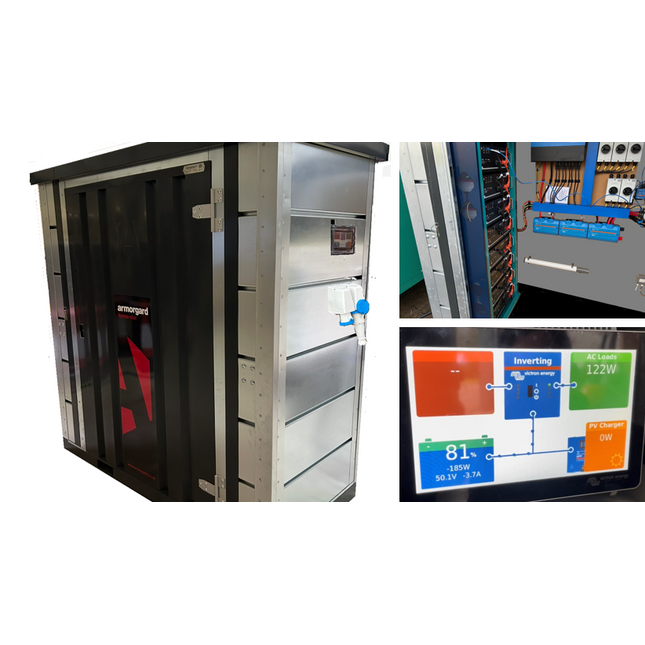

DOWNLOAD SPEC SHEET The 30kw/45kw Battery Storage Unit is a tailored energy solution designed to provide reliable and efficient power. This Powerbox solution ensures a sustainable and uninterrupted power supply. Each unit can be charged by Generator or Mains Power & has generator stop/start function built-in. Solar Panels can also be incorporated to supply renewable energy for charging. The Powerbox Battery Storage Container is a cutting-edge solution for efficient and reliable energy storage. With its robust design, advanced features, and versatile applications, it is an ideal choice for anyone looking to enhance their energy management and sustainability efforts. Ideal for remote locations, building site offices, telecom towers, events & anywhere that requires silent power.   Ideal for emergency or temporary power solution General Data Model: Powerland Powerbox 15/30 Dimensions: 2000 x 1000 x 2000 mm Weight: Approx. 1200 kg Inverter Specifications Type: 3-Phase Inverter Rated Power: 1 x 10 kVA per phase (30 kVA total) Maximum Output: 42 kVA (3-phase) AC Output Voltage Range: 200-400 VAC ± 2% Frequency Range: 50 Hz ± 0.1% Usable Stored Power: 30 kWh Maximum Feed Through Current: 3 x 100 A AC Input Voltage Range: 38 - 66 V Input Frequency: 45 - 65 Hz Weight (per inverter): 3 x 49 kg Dimensions (per inverter): 677 x 363 x 206 mm Connections: 1 x 63A (3-phase socket) 1 x 32A (3-phase socket) 2 x 16A (single-phase sockets) Efficiency: >97%   Battery Specifications Type: Lithium LiFePO4 Configuration: 9 x 100 Ah modules, 48-51 V Usable Capacity: 40 kW Nominal Output: 5 kW Depth of Discharge: 100% Battery Management: Yes (with Active Balancing) Interfaces: RS485/CAN Number of Cycles: 3,500 (+25°C; 0.45C) Temperature Range: -20°C to +60°C Weight: 42 kg Dimensions: 442 x 431 x 177 mm Design Life: 15 years

Read more less

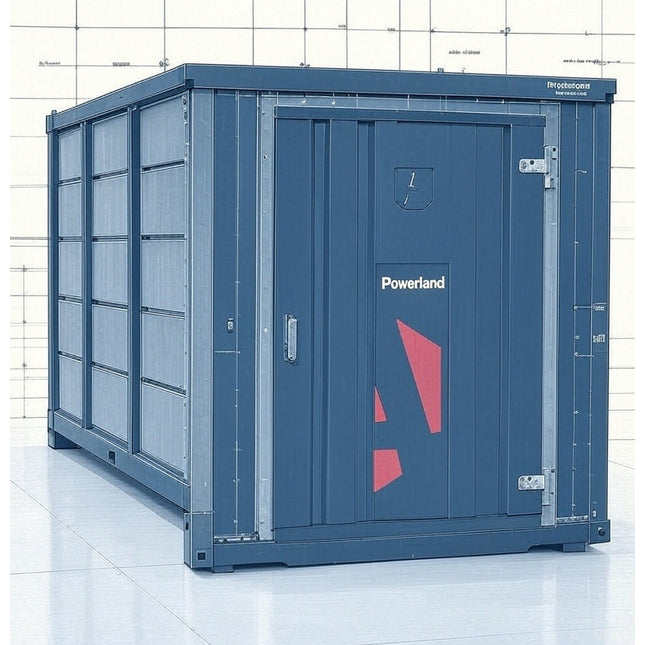

DOWNLOAD SPEC SHEET The 45kw/90kw Battery Storage Unit is a tailored energy solution designed to provide reliable and efficient power. This Powerbox solution ensures a sustainable and uninterrupted power supply. Each unit can be charged by Generator or Mains Power & has generator stop/start function built-in. Solar Panels can also be incorporated to supply renewable energy for charging. The Powerbox Battery Storage Container is a cutting-edge solution for efficient and reliable energy storage. With its robust design, advanced features, and versatile applications, it is an ideal choice for anyone looking to enhance their energy management and sustainability efforts.    General Data Model: Powerland Powerbox 45/90 Dimensions: 2000 x 2000 x 2000 mm Weight: Approx. 2000 kg Inverter Specifications Type: 3-Phase Inverter Rated Power: 1 x 15 kVA per phase (45 kVA total) Maximum Output: 45 kVA (3-phase) AC Output Voltage Range: 200-400 VAC ± 2% Frequency Range: 50 Hz ± 0.1% Usable Stored Power: 90 kWh Maximum Feed Through Current: 3 x 100 A AC Input Voltage Range: 38 - 66 V Input Frequency: 45 - 65 Hz Weight (per inverter): 3 x 80 kg Dimensions (per inverter): 810 x 405 x 217 mm Connections: 1 x 63A (3-phase socket) 1 x 32A (3-phase socket) 2 x 16A (single-phase sockets) Efficiency: >97%      Battery Specifications Type: Lithium LiFePO4 Configuration: 9 x 100 Ah modules, 48-51 V Usable Capacity: 90 kW Nominal Output: 5 kW Depth of Discharge: 100% Battery Management: Yes (with Active Balancing) Interfaces: RS485/CAN Number of Cycles: 3,500 (+25°C; 0.45C) Temperature Range: -20°C to +60°C Weight: 42 kg Dimensions: 442 x 431 x 177 mm Design Life: 15 years

Read more less

DOWLOAD SPEC SHEET The 30kw/45kw Battery Storage Unit is a tailored energy solution designed to provide reliable and efficient power. This Powerbox solution ensures a sustainable and uninterrupted power supply. Each unit can be charged by Generator or Mains Power & has generator stop/start function built-in. Solar Panels can also be incorporated to supply renewable energy for charging. The Powerbox Battery Storage Container is a cutting-edge solution for efficient and reliable energy storage. With its robust design, advanced features, and versatile applications, it is an ideal choice for anyone looking to enhance their energy management and sustainability efforts. Ideal for remote locations, building site offices, telecom towers, events & anywhere that requires silent power.   Ideal for emergency or temporary power solution General Data Model: Powerland Powerbox 30/45 Dimensions: 2000 x 1000 x 2000 mm Weight: Approx. 1200 kg Inverter Specifications Type: 3-Phase Inverter Rated Power: 1 x 10 kVA per phase (30 kVA total) Maximum Output: 42 kVA (3-phase) AC Output Voltage Range: 200-400 VAC ± 2% Frequency Range: 50 Hz ± 0.1% Usable Stored Power: 45 kWh Maximum Feed Through Current: 3 x 100 A AC Input Voltage Range: 38 - 66 V Input Frequency: 45 - 65 Hz Weight (per inverter): 3 x 49 kg Dimensions (per inverter): 677 x 363 x 206 mm Connections: 1 x 63A (3-phase socket) 1 x 32A (3-phase socket) 2 x 16A (single-phase sockets) Efficiency: >97%  Battery Specifications Type: Lithium LiFePO4 Configuration: 9 x 100 Ah modules, 48-51 V Usable Capacity: 40 kW Nominal Output: 5 kW Depth of Discharge: 100% Battery Management: Yes (with Active Balancing) Interfaces: RS485/CAN Number of Cycles: 3,500 (+25°C; 0.45C) Temperature Range: -20°C to +60°C Weight: 42 kg Dimensions: 442 x 431 x 177 mm Design Life: 15 years

Read more less
