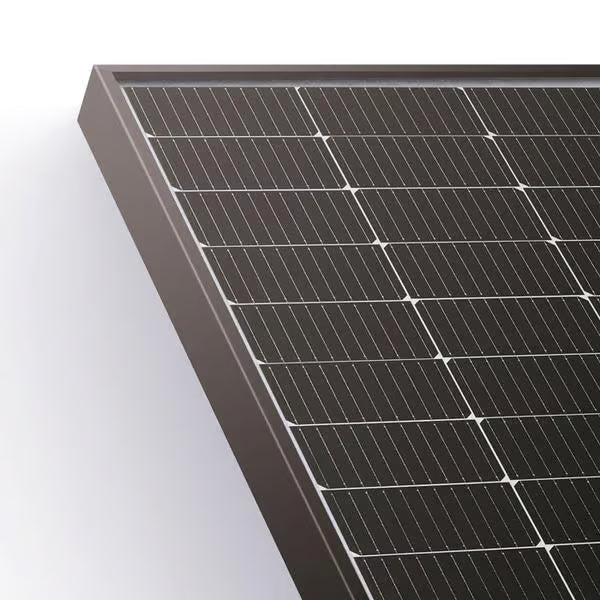

JA Solar 460W N-type, Double Glass Bifacial LB Traceable Low Carbon, 54 Cell, Black Frame, MC4-EVO2

460W N-type Double Glass Traceable Low Carbon High Efficiency Monocrystalline Module - 1500V

Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.

Features:

• High Power Output (460W) : The JA Solar 460W module delivers an exceptional power output, making it an ideal choice for residential, commercial, and industrial applications.
• N-Type Cell Technology: The use of N-type cells enhances the efficiency and longevity of the module.
• Durable Double Glass Design: The double glass construction provides enhanced durability, improving resistance to environmental stresses such as moisture, dust, and temperature fluctuations.
• Bifacial Technology: With bifacial panels, this solar module captures sunlight on both the front and rear sides.

Product Warranty: 25 years.

Linear Power Output Warranty: 30 years.

JA Solar Integrated Traceable System Low Carbon.

Comes supplied with staubli MC4-EVO2A connectors.

Note: 1200mm landscape cable included

Supplier Part No:

JAM54D-40-460-LB-TSLC-MC4

Weight:

22 kg

Rated Power:

460 W

MCS Reference:

BABT 8515-343-460W

Length:

1,762 mm

Width:

1,134 mm

Depth:

30 mm

VMPP:

33.17 V

IMPP:

13.87 A

Isc:

14.64 A

Voc:

39.7 V

Temp. Coefficient (Mpp):

-0.29 %

Clamp position on panel:

Long and short side

Connector Description:

EVO2A

Connector Type:

Round Post

Efficiency:

23.0 %

Pallet Size:

Oversized
