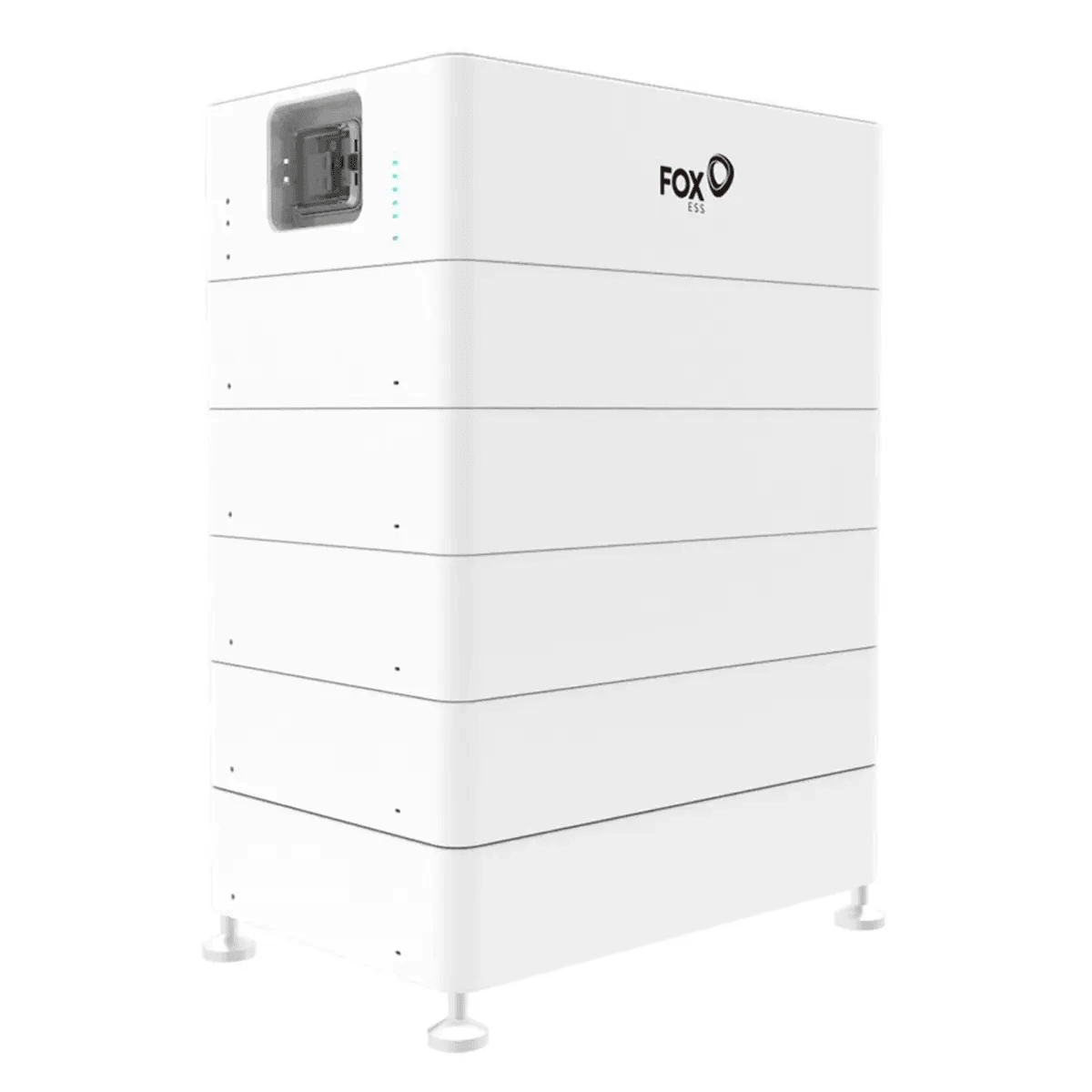

Fox ECS 2.9kWh CONNECTOR TYPE A - Stack of 6 (17.28kWh Useable Storage) Incl. Master

ECM2900-4A2C

• 2.88kWh Capacity
• Scalable to 20.16kWh
• 90% Depth of Discharge
• Wide Temperature Tolerance
• Easy Installation
• CAN/RS485 Communication
• High Voltage

The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.

Weight: 196.7kg

Dimensions (Width, Hight, Depth): 570mm x 830mm x 380mm

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves).



IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2's of the ECS batteries. We stock both the Connector type A  and Connector type B variations.

Weight: 213.95 kg

Battery Type: Lithium Ion

Nominal Energy: 17280 Wh

Depth of discharge: 90.00 %

Voltage: 345 V

Continuous Discharge Rate (Normal Use): 17280 W

Maximum Discharge Rate (5 Minutes): 17280 W

Surge Discharge Rate (15 Seconds): 22464 W

Maximum Charge Rate (5 Minutes): 17280 W
