ESS PQ1
Fox ESS PQ1 5kW 1ph Hybrid Inverter
Product form
In stock
Fast shipping
Collection available More info
Overview

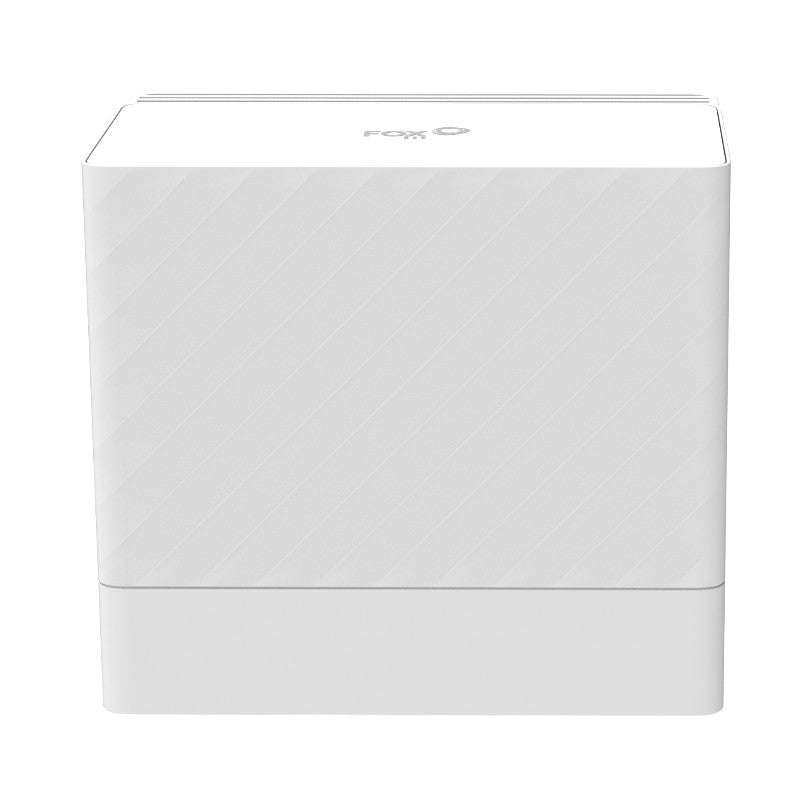

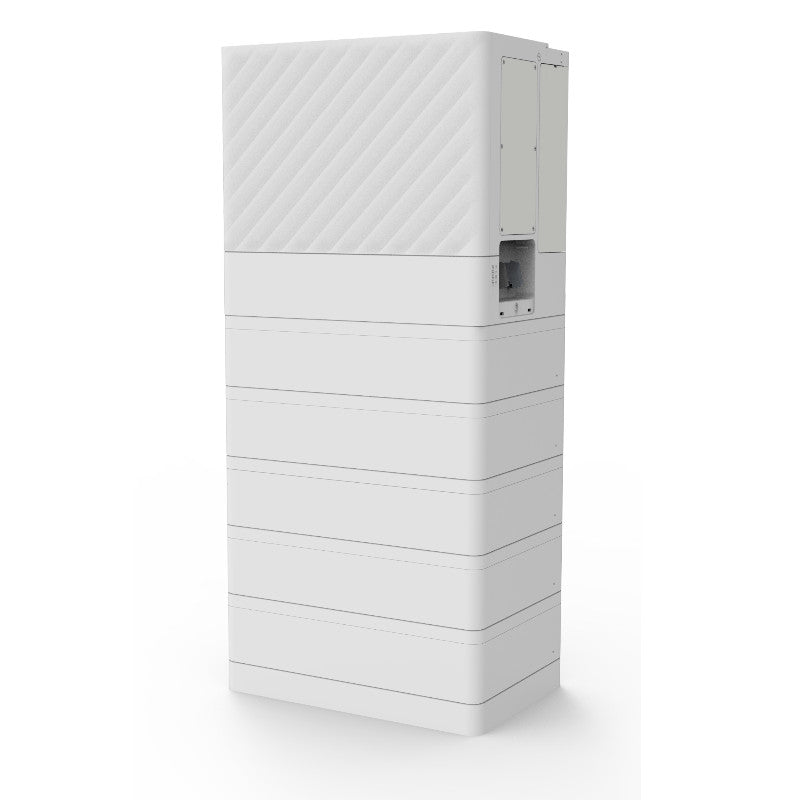

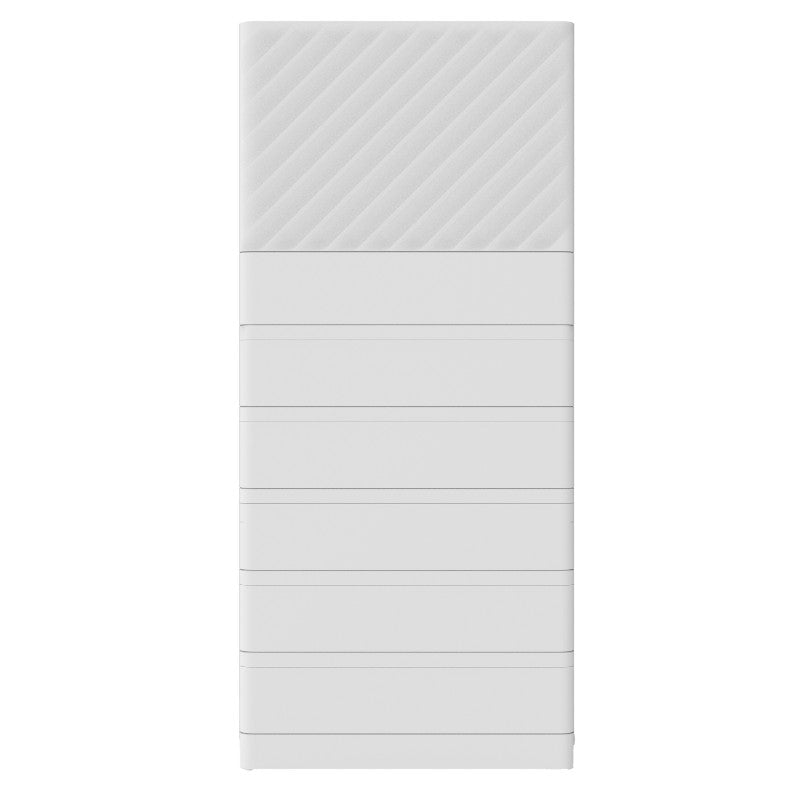

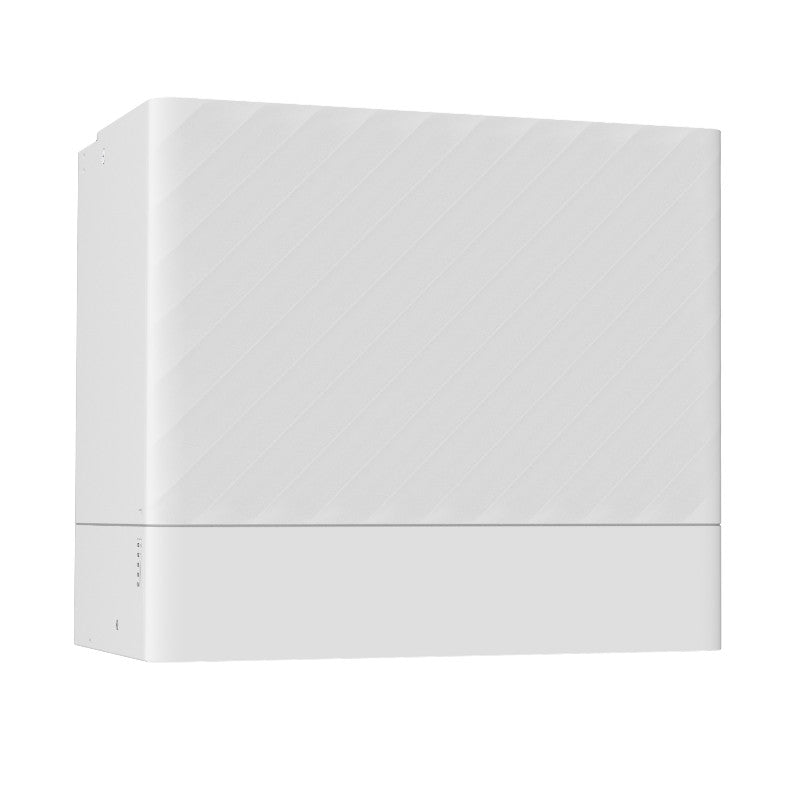

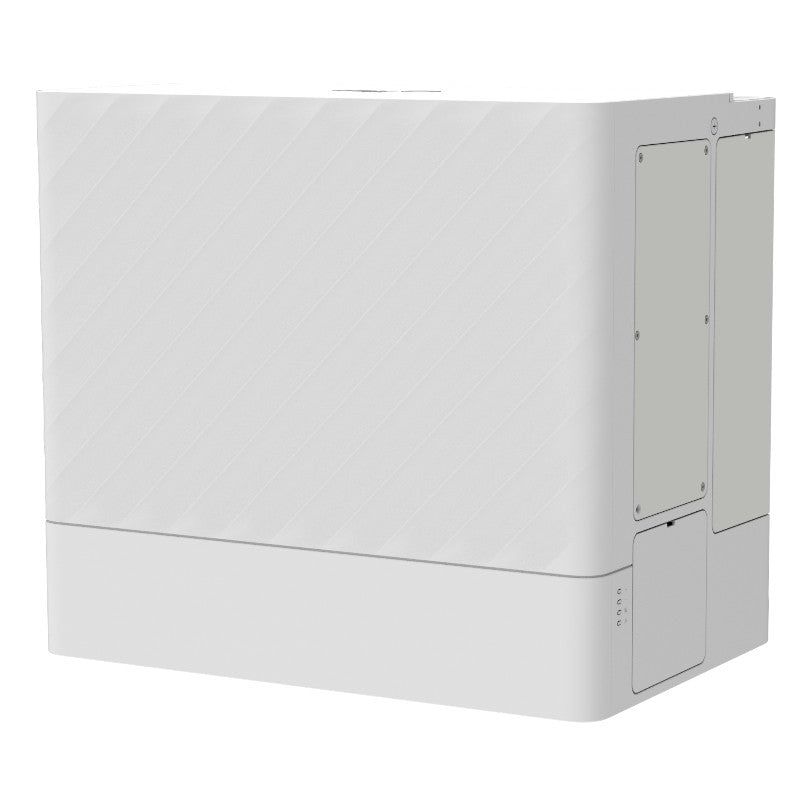

The Fox ESS PowerQube1 is a 1ph stackable AIO energy storage system, composed of a inverter and between 2 and 6 EQ5000-S 4.92kWh batteries proving up to 29.52kWh of storage.
Flexible Application
The PQ1 is a modular system that can be configured to meet the array size and storage capacity requirements of an installation. Inverters are available in sizes of 3.7kW to 12kW and can support up to 200% PV oversizing. Between 2 and 6 EQ5000-S batteries can be used providing between 9.84kWh and 29.52kWh of storage.
It has a built in 63A bypass for full home backup with a 4ms seamless switch time from on-grid to off-grid.
Easy Installation and Monitoring
PQ1 is designed for easy single-person installation, with integrated configuration and a plug and play set-up. Advanced system monitoring with FoxCloud V2.0 allowing users to monitor your system remotely via smartphone app or web portal.
This product comes with a 12 year warranty.
Max PV array power
Max MPPT input power
16kW
8kw per MPPT
Max input voltage
600V
No. of MPPTs
Strings per MPPT
2
1
