HC-EV-AC-11K

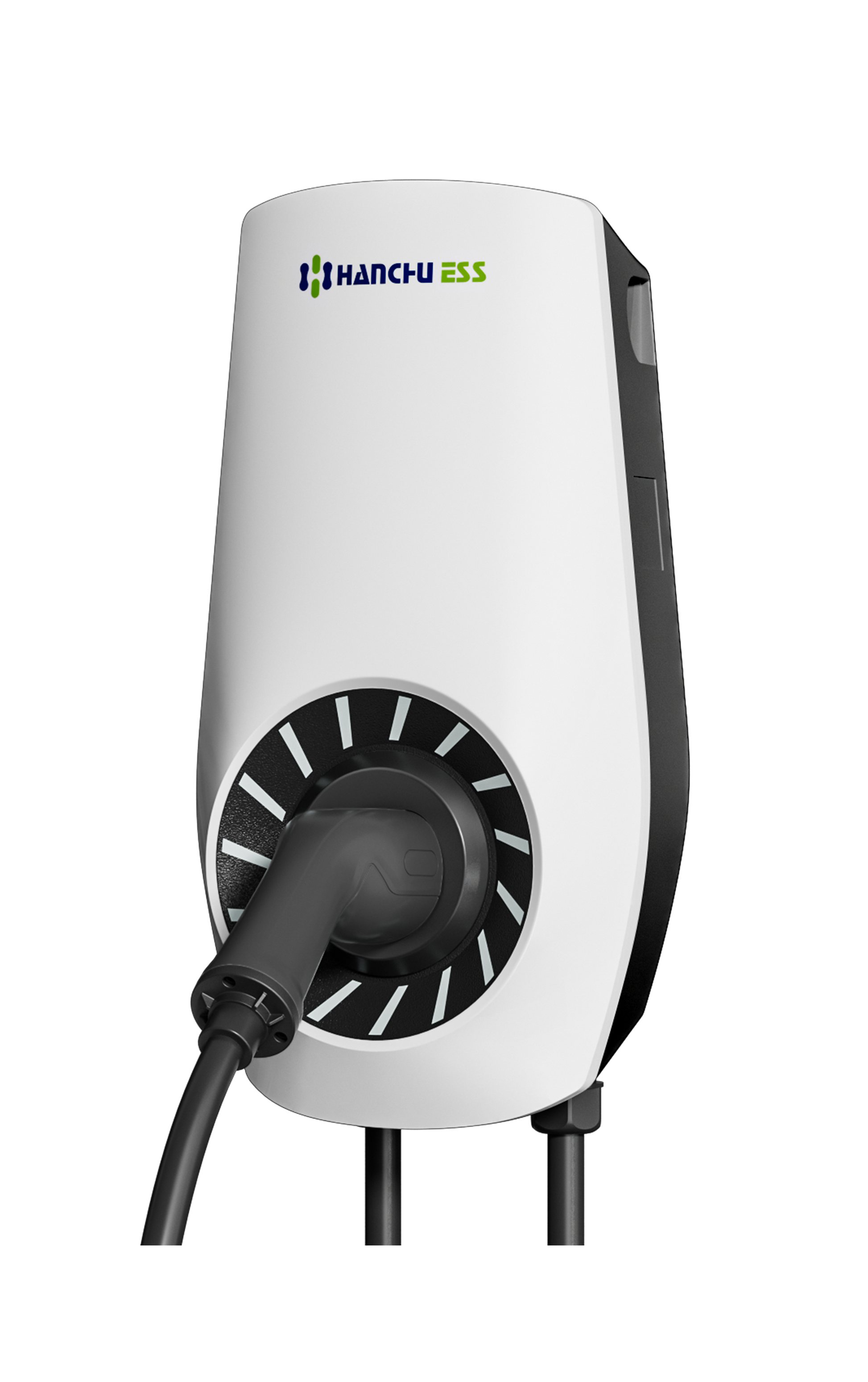

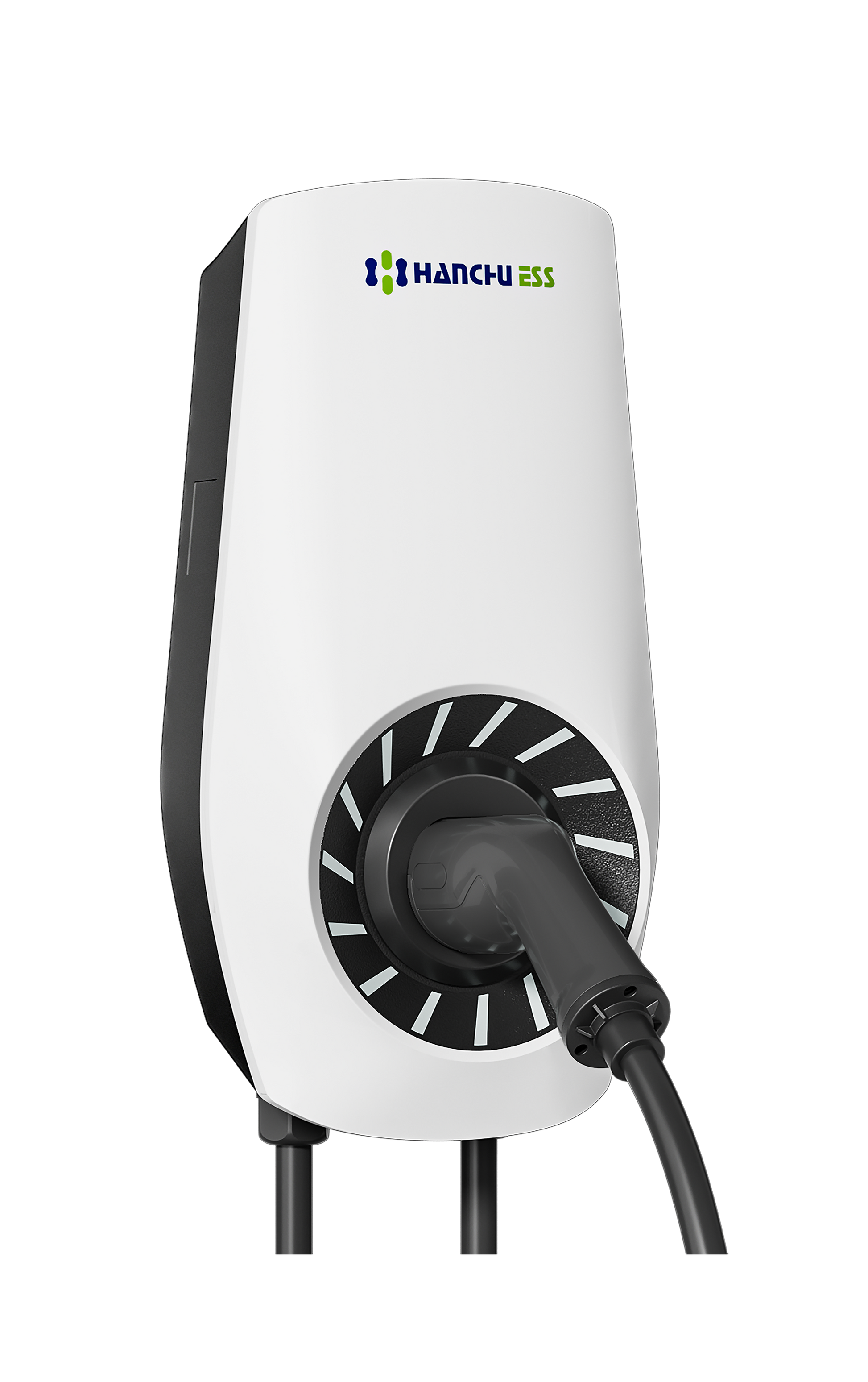

Hanchu ESS 11KW Three Phase EV Charger
Product form
Regular price
£799.00
Regular price
Sale price
£799.00
Unit price
/
£958.80 INC. VAT
In stock
Fast shipping
Collection available More info
Overview
Superior Performance
EV Charger supports a variety of charging methods, including APP control, RFID, plug and play. And it has dynamic load balance control function, which can limit the load.
Smart Management
Supports APP/web data monitoring, remote start, and schedule the charging time. Operators and end-users can stay informed about the real-time operational status of the system, enabling remote scheduling, OTA upgrades, and historical data analysis.
Safety Protection
Multiple protections to ensure the safety of equipment and users, such as Type A+DC 6mA leakage detection and PEN fault protection.
Flexible Configuration

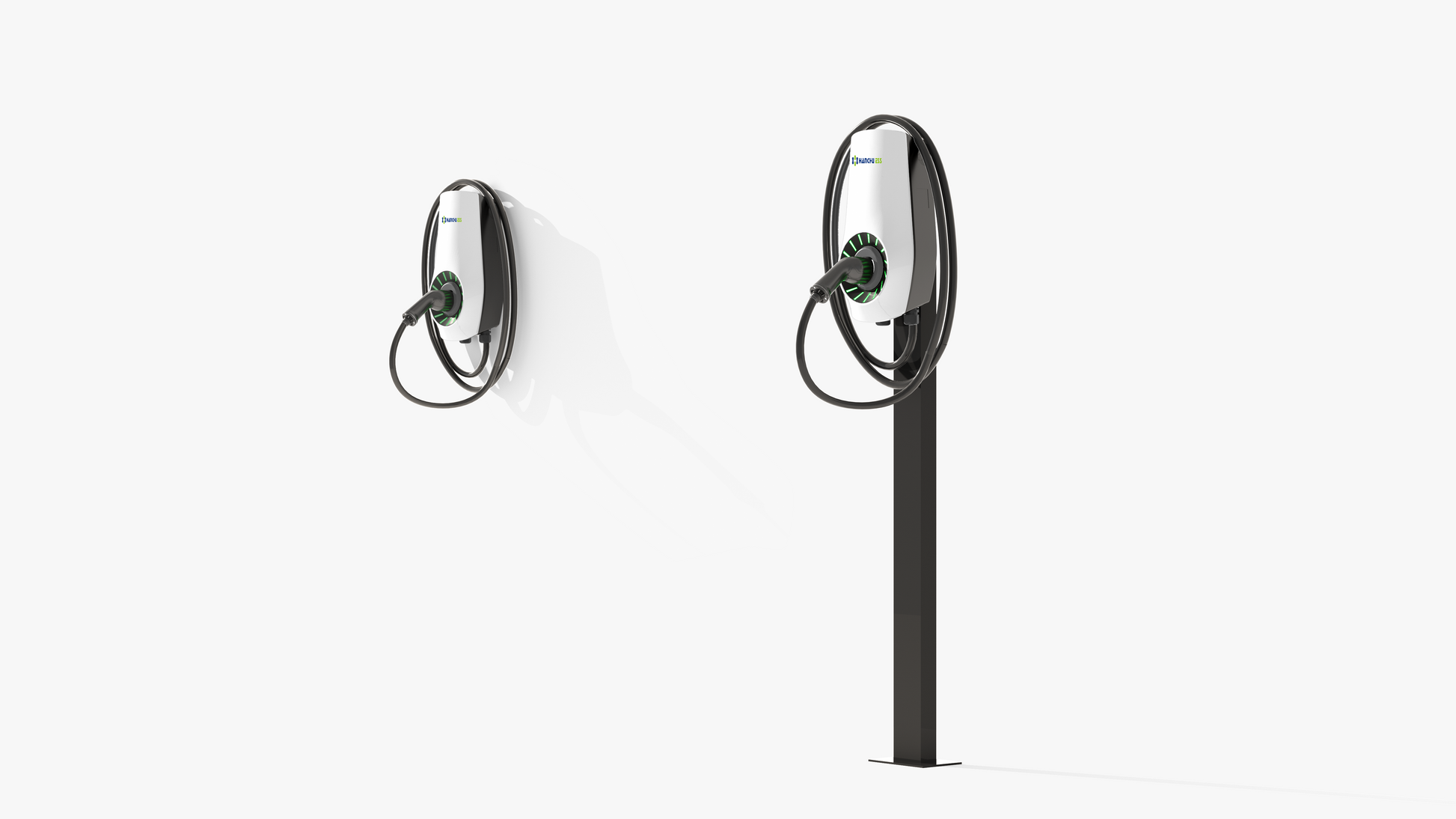

The charging post is available in two options, cable and socket version. It can be wall/post mounted to support both domestic and operational use. An optional 4.3-inch LCD display is available, which is more user-friendly.
Input Power (AC)
- Rated Power: 11kW
- Input Voltage: 360-456.5V
Output Parameters
- Output Current: 16A
- Output Power: 11kW
- Connector Type: Type 2 socket / 5m cable
User Interface & Control
- User Authentication: APP, QR Code (optional), RFID
- HMI: 4.3 inch
- Communication: WiFi / Bluetooth / LAN (optional) / 4G
- External Communication: RS485
- Communication Protocol: OCPP 1.6J
General Data
- Dimension (W×H×D): 240×460×145mm
- Net Weight: 6.5Kg (Case S0); 8.5Kg (Case S1)
- Ingress Protection Degree: IP54 (Case S0); IP65 (Case S1)
- Storage Temperature: -40°C to +75°C
- Operating Temperature: -30°C to +50°C
- Operating Humidity: 5%-95%
- Altitude: ≤2000m
- Cooling Method: Natural cooling
- Material: PC+ASA
- Optional: MID energy meter inside (meter window optional)
- Warranty: 3 years
- Certificate: CE, CB
