Introduction

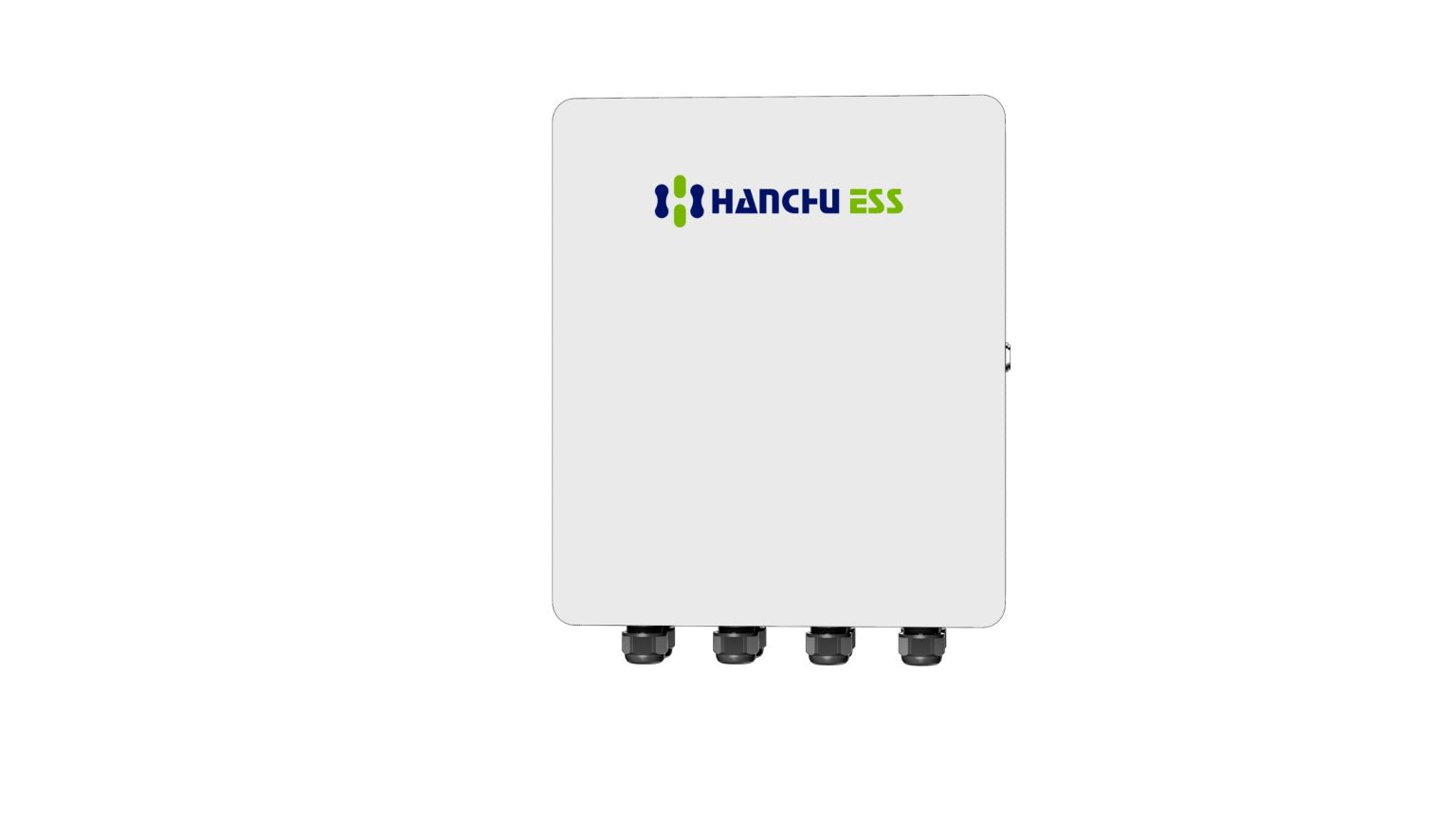

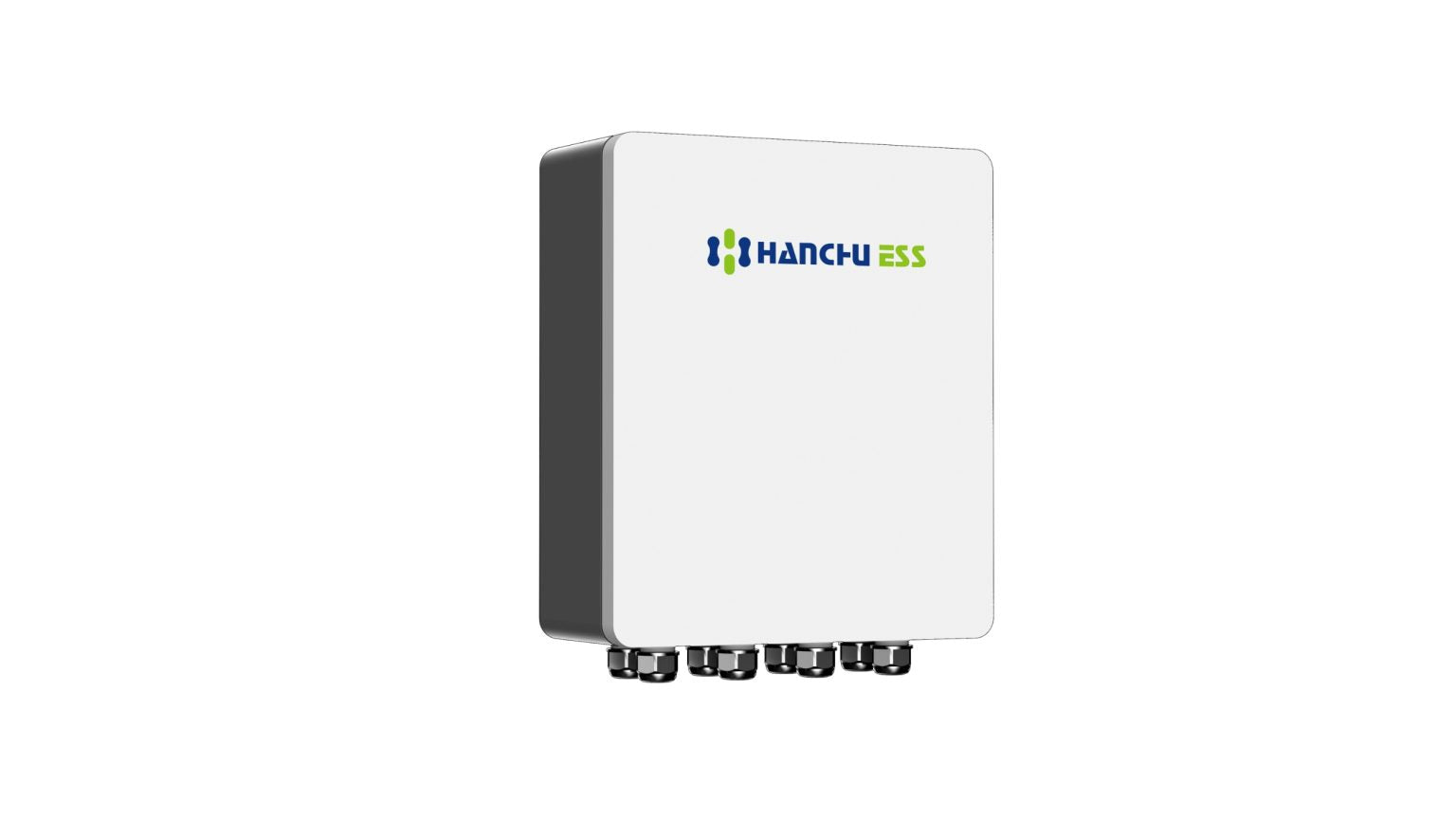

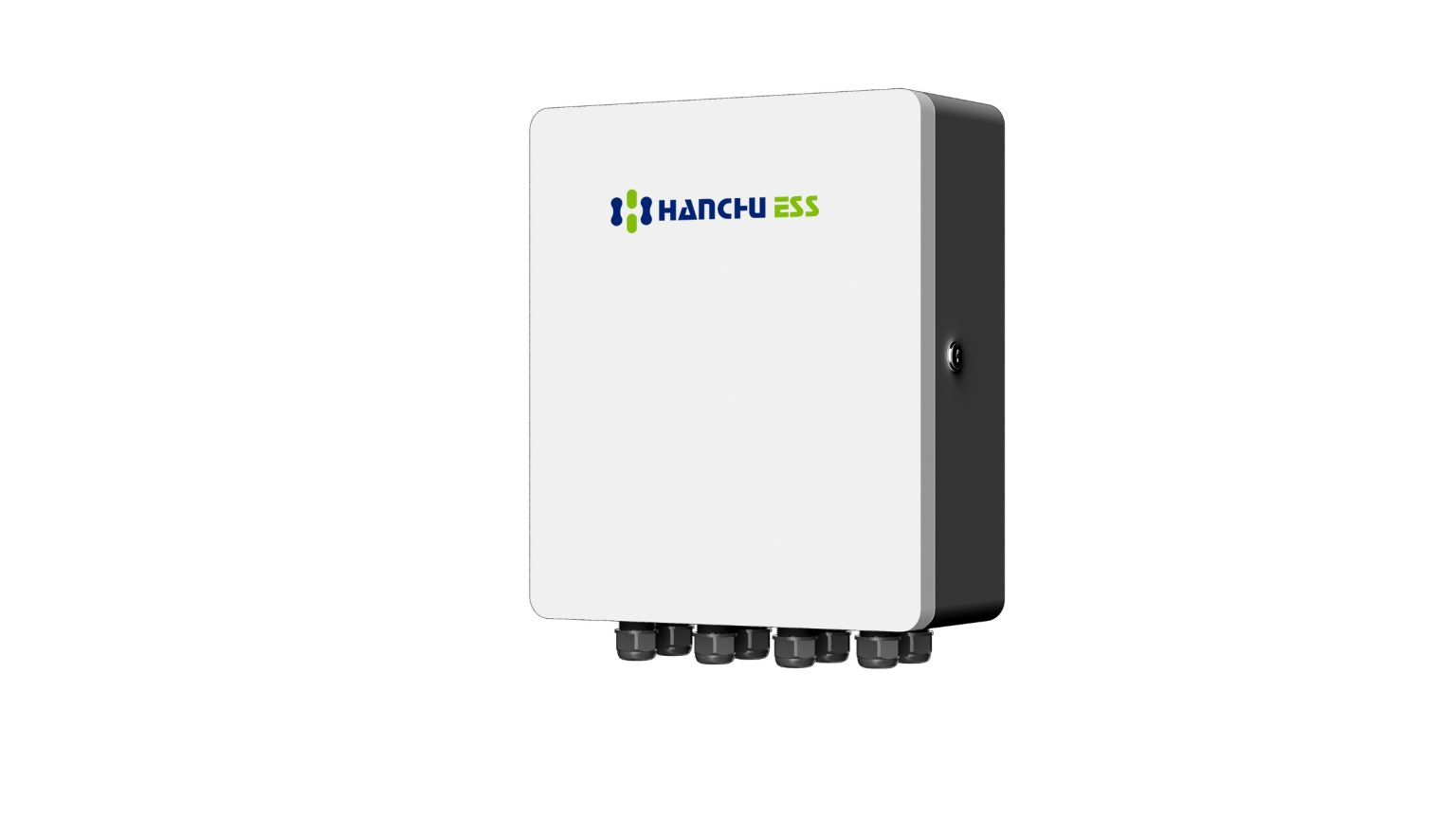

The HANCHU ESS Gateway is designed for home energy storage systems using the HANCHU 10kW inverter, providing centralised control for household energy management. It supports partial home backup, EV charger connection, system monitoring, data collection and backup switching, helping installers deliver a more complete and reliable energy storage solution.
Key Features
Supports PV inverters – Can be combined with a compatible inverter to support load power supply.
Reliable Energy – Switch to bypass mode in case of system abnormality to supply power from the grid to the loads.
Ultimate Safety – IP65 ingress protection, Protection Class I and Type II AC surge protection provide a robust safety foundation for residential energy systems.
Flexible Operation – Supports both on-grid and off-grid operating modes.
Easy Installation – Pre-installed meters help simplify installation and reduce on-site complexity.
Ensures safety against short circuits, overloads and DC back-feed.
Input Data
Nominal AC Input Voltage Range: 220/230/240V
Max. AC Current (Grid): 100A
Max. AC Current (PV INV): 32A
Max. AC Current (Inverter): 50A
Rated AC Frequency: 50/60Hz
Output Data
Nominal AC Output Voltage Range: 220/230/240V
Max. AC Current (Load): 100A
Max. AC Current (Backup): 50A
Max. AC Current (EV Charger): 40A
Rated Output Frequency: 50/60Hz
Switching Time: House Load Consumer Unit ≤300ms, Additional Critical Load ≤10ms
