Overview
Introduction

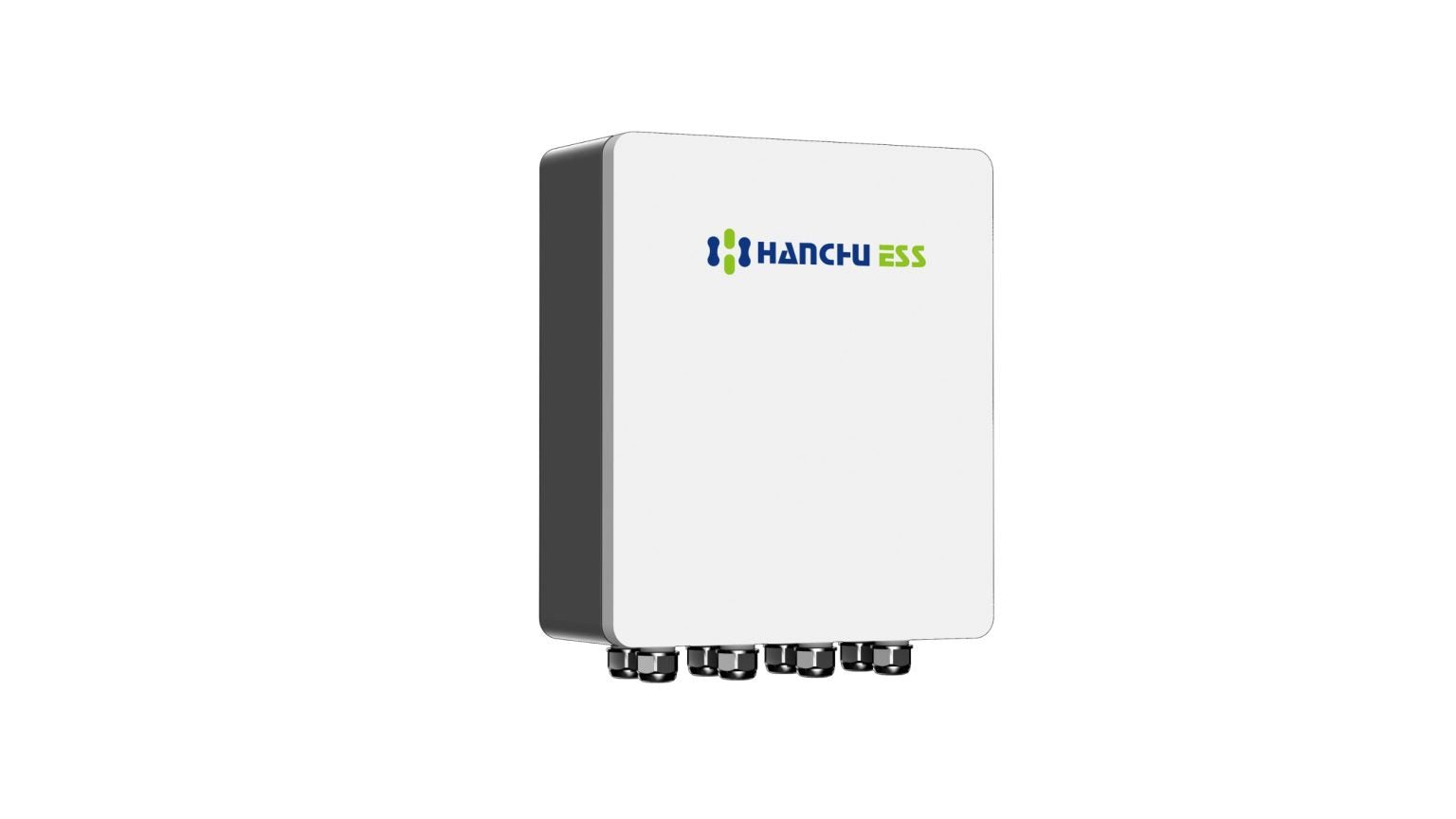

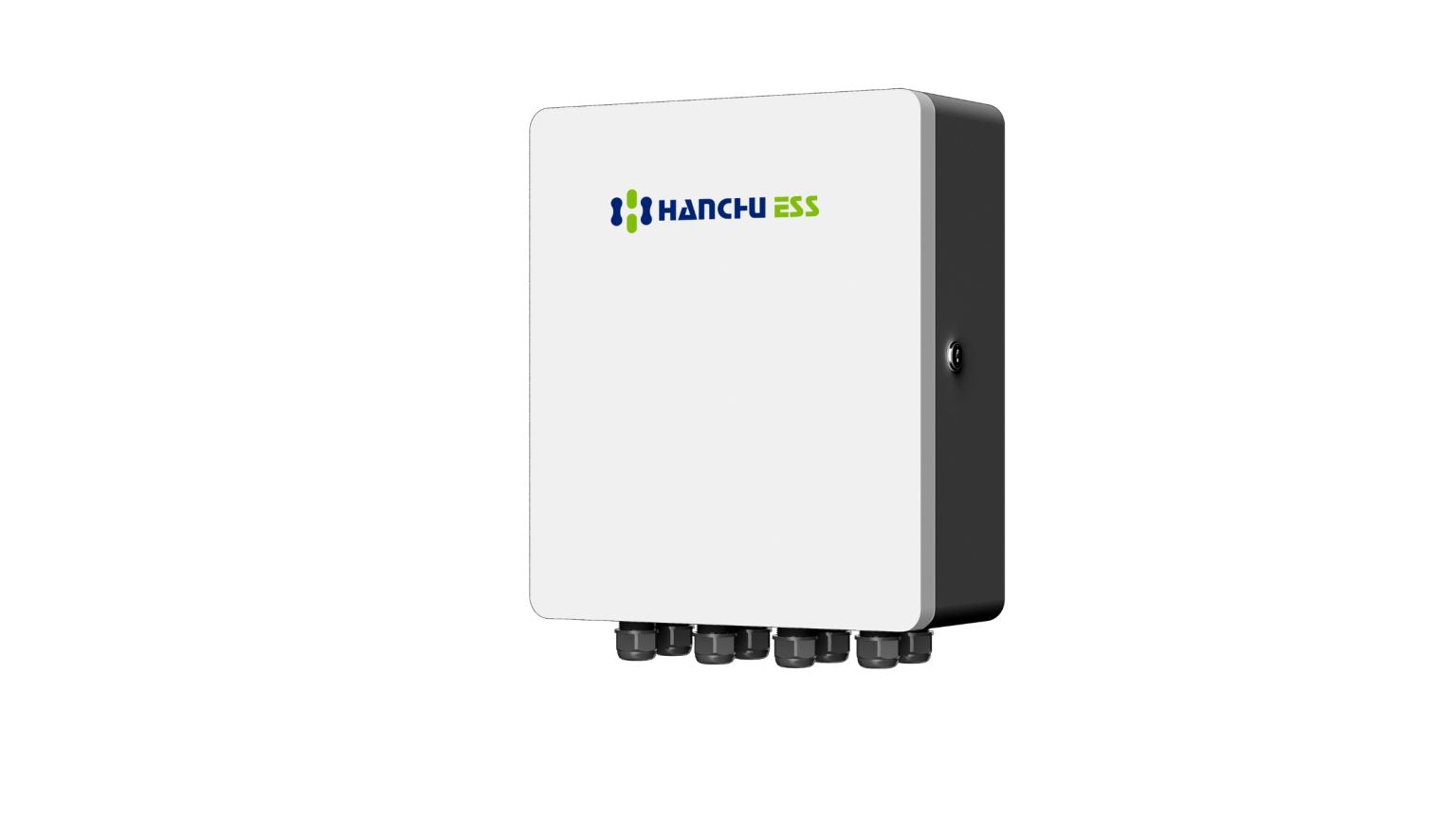

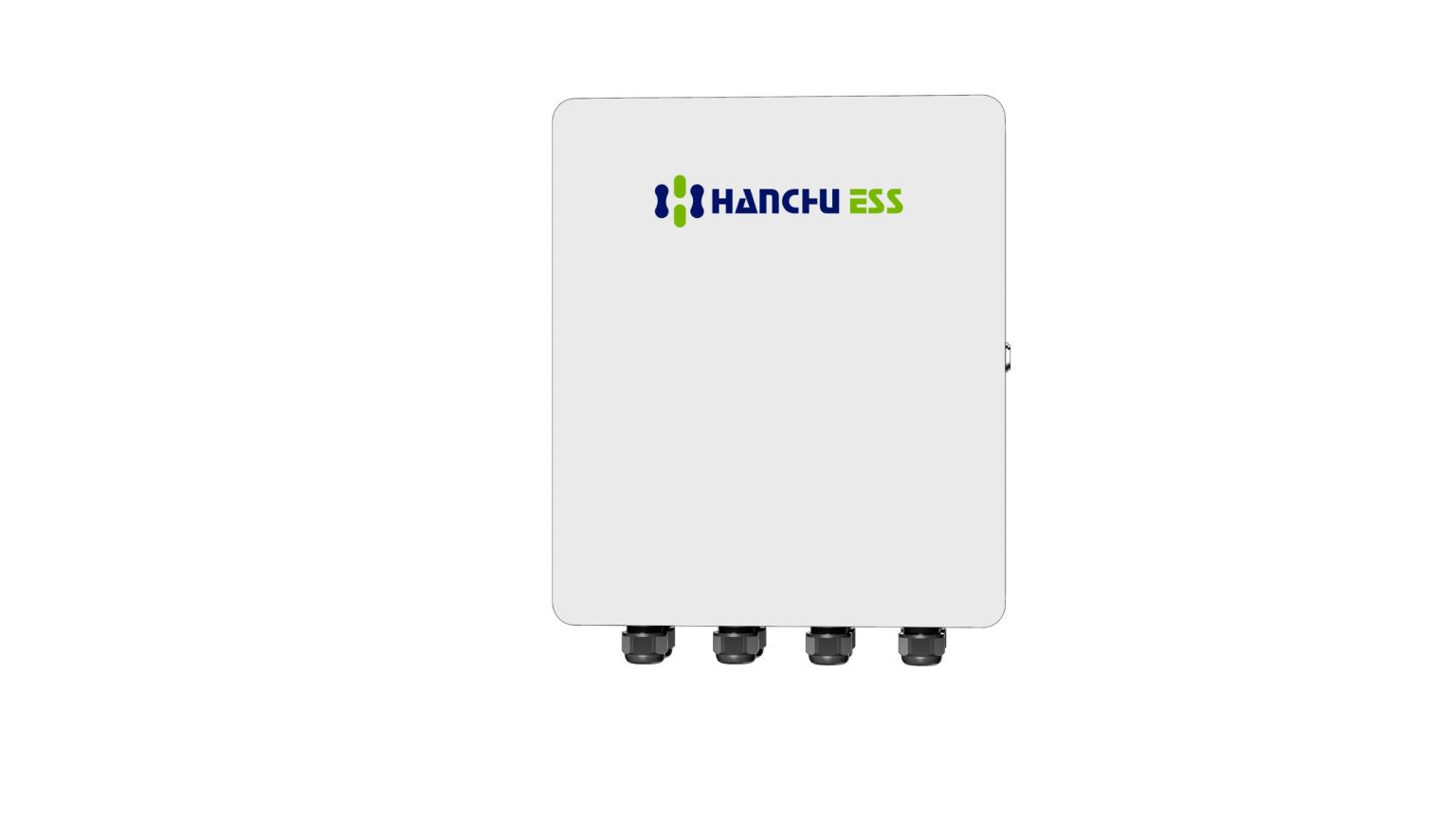

The HANCHU ESS Gateway is designed for home energy storage systems using the HANCHU 7kW–8kW inverter range, providing centralised control for household energy management. It supports partial home backup, EV charger connection, system monitoring, data collection and backup switching, helping installers deliver a more complete and reliable energy storage solution.
Key Features
- Supports PV inverters – Can be combined with a compatible inverter to support load power supply.
- Reliable Energy – Switch to bypass mode in case of system abnormality to supply power from the grid to the loads.
- Ultimate Safety – IP65 ingress protection, Protection Class I and Type II AC surge protection provide a robust safety foundation for residential energy systems.
- Flexible Operation – Supports both on-grid and off-grid operating modes.
- Easy Installation – Pre-installed meters help simplify installation and reduce on-site complexity.
- Ensures safety against short circuits, overloads and DC back-feed.
- Nominal AC Input Voltage Range: 220/230/240V
- Max. AC Current (Grid): 100A
- Max. AC Current (PV INV): 32A
- Max. AC Current (Inverter): 40A
- Rated AC Frequency: 50/60Hz
Output Data
- Nominal AC Output Voltage Range: 220/230/240V
- Max. AC Current (Load): 100A
- Max. AC Current (Backup): 40A
- Max. AC Current (EV Charger): 40A
- Rated Output Frequency: 50/60Hz
- Switching Time: House Load Consumer Unit ≤300ms, Additional Critical Load ≤10ms
Supported Devices
- Inverter: Yes
- Battery: Yes
- EV Charger: Yes
- Load: Yes
General Data
- Activation Methods: Grid Startup + Inverter Startup
- Operating Modes: On Grid + Off Grid
- Bypass Mode: Manual
- Protection Class: I
- AC Surge Protection Type II: Yes
- Ingress Protection Degree: IP65
- Operating Temperature Range: -20~50°C
- Relative Humidity Range: 5%~95%
- Operating Altitude: <4000m (>2000m derating)
- Cooling Concept: Natural convection
- Dimensions (W x H x D): 360*450.5*169.5 mm
- Weight: 14.5kg
- Warranty: 2 years
