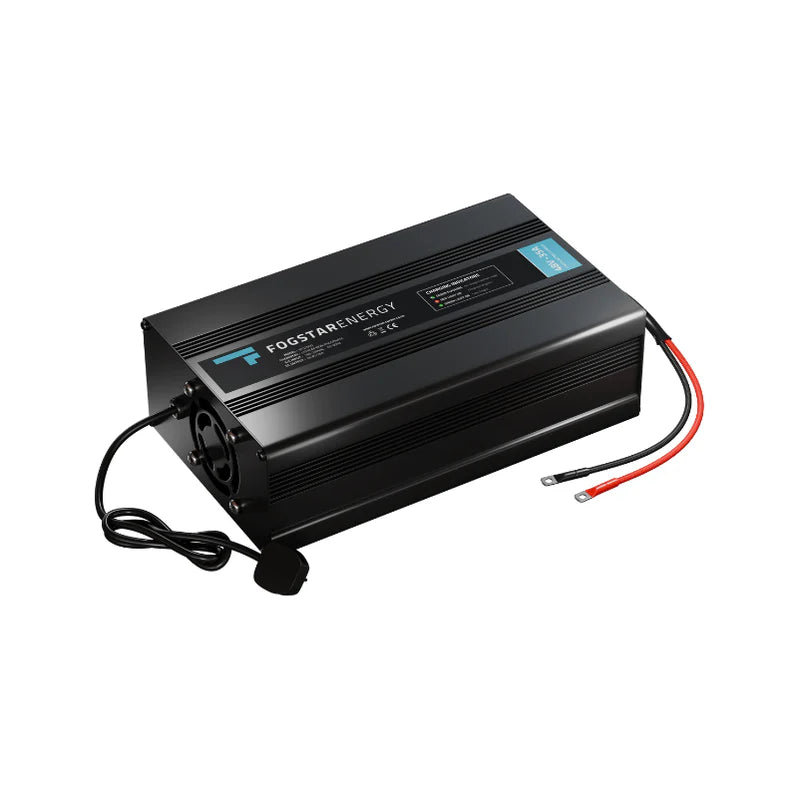

LiFePO4 Charger (Fogstar Energy) - 48V 35A

Key Features:

• 48V Output: Perfectly suited for charging 48V LiFePO4 battery systems.
• 35A Current: Delivers a powerful charge to get your batteries back up and running quickly.
• Compatible: Ideal for using with all 48V batteries.
• User-Friendly: Designed for ease of use with clear operation and status indicators.
• Extensive Protections: Built-in safeguards against over-voltage, over-current, short circuits, and reverse polarity for safe and reliable charging.
• 2-Year Warranty: Backed by a comprehensive 2-Year Manufacturers Warranty

PRODUCT SPECIFICATIONS

Working Temperature     -30°c ~ +40°c
Storage Temperature       -40°c ~ +70°c
Relative Humidity            5% ~ 95%
Heat Dissipation Mode    Fan Cooling
Input Voltage                   180-260 VAC
Input Frequency               50Hz / 60 Hz
Chemistry                          LiFePO4
DC Output                         48V / 35A
Ring connector size          M10 (will fit M6 using a washer)

HOW TO CONNECT YOUR CHARGER

1. Remove your charger from the packaging
2. Retain your packaging
3. Ensure the charger air vents are not blocked before connecting
4. Connect the black (negative -) cable to the black (negative -) terminal on the battery
5. Connect the red (positive +) cable to the red (positive +) terminal on the battery
6. Ensure terminal rings are tightened
7. Plug your battery charger into the mains and switch ON
8. Your battery indicator light should be flashing green (pre-charge inspection stage).

HEALTH AND SAFETY

• Do not disassemble the charger
• Do not leave charger on unattended
• Do not remove the charger cover
• Do not block the charger air vent
• Keep away from heat source
• Keep away from water
• Do not crush, incinerate or modify
• Only use within manufacturers specifications.
