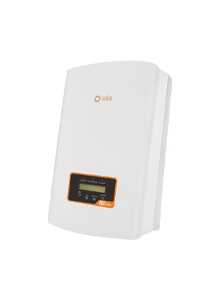

S6 2.5kW Dual MPPT - Single Phase with DC
Product form
In stock
Fast shipping
Collection available More info
Overview
-
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
- Maximum string input current 14A
- Easy installation: Integrate with export power control function and DRM function.
- Max. Efficiency over 97.7% European efficiency over 97.1%
- Wide input voltage range for better generation and low startup
- Dual MPPT design with precise MPPT algorithm
- Export Limitation built in - Requires CT clamp (sold separately)
- Integrated AFCI (DC arc-fault circuit protection)
- Rated IP66
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
-
- Supplier Part No:
- S6-GR1P2.5K
- Weight:
- 13.49 kg
- Rated Power:
- 2,500 W
- Min PPT Voltage:
- 60 V
- Max PPT Voltage:
- 550 V
- DC Startup Voltage:
- 60 V
- DC Shutdown Voltage:
- 50 V
- Max Input Voltage:
- 550 V
- Max DC Power:
- 3,750 W
- Max AC Power (5 Minutes):
- 2,800 W
- Surge AC Power (1 Second):
- 2,800 W
- Max DC Current:
- 28 A
- Max DC Inputs:
- 2
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 2
- Euro Efficiency:
- 96.5 %
- Transformer:
- none
- MPPT Quantity :
- 2
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
