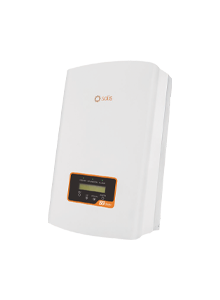

Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.

Product Features

•   Maximum string input current 14A
•   Easy installation: Integrate with export power control function and DRM function.
•   Max. Efficiency over 97.7% European efficiency over 97.1%
•   Wide input voltage range for better generation and low startup
•   Dual MPPT design with precise MPPT algorithm
•   Export Limitation built in - Requires CT clamp (sold separately)
•   Integrated AFCI (DC arc-fault circuit protection)
•   Rated IP66
• 5-year standard warranty

  Supplier Part No:

  S6-GR1P6K

  Weight:

  14.3 kg

  Rated Power:

  6,000 W

  Min PPT Voltage:

  90 V

  Max PPT Voltage:

  520 V

  DC Startup Voltage:

  120 V

  DC Shutdown Voltage:

  90 V

  Max Input Voltage:

  600 V

  Max DC Power:

  9,000 W

  Max AC Power (5 Minutes):

  6,000 W

  Surge AC Power (1 Second):

  6,000 W

  Max DC Current:

  28 A

  Max DC Inputs:

  2

  Has DC Fuses:

  0

  Connector:

  MC4

  Included Connectors:

  4

  Euro Efficiency:

  97.1 %

  Transformer:

  none

  MPPT Quantity :

  2

  Has Integrated DC Switch:

  Yes

  Warranty:

  5 years
