SOL-3.6-MINI-S6-DC

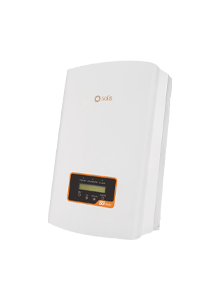

S6 Mini 3,6kW 1MPPT 1Ph Inverter - with DC isolator
Product form
Regular price
£320.92
Regular price
Sale price
£320.92
Unit price
/
£385.10 INC. VAT
In stock
Fast shipping
Collection available More info
Overview
- Rating: 3,600W
- Phases: 1
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
Product Features
- Super high frequency switching technology with maximum efficiency of 97.3%
- Max PV Power of 5.4kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 500V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Important
Please note that this inverter does not include a data logger or CT. For one inverter deployment, use CT "SOL-CT-100A-10M" For more than one inverter deployment, use EPM1 EPM1 or the CT requires a separate data logger. These items are sold separately.- Supplier Part No:
- S6-GR1P3.6K-M
- Weight:
- 7.7 kg
- Rated Power:
- 3,600 W
- Min PPT Voltage:
- 90 V
- Max PPT Voltage:
- 500 V
- DC Startup Voltage:
- 90 V
- DC Shutdown Voltage:
- 80 V
- Max Input Voltage:
- 600 V
- Max DC Power:
- 5,400 W
- Max AC Power (5 Minutes):
- 3,600 W
- Surge AC Power (1 Second):
- 3,600 W
- Max DC Current:
- 19 A
- Max DC Inputs:
- 2
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 1
- Euro Efficiency:
- 96.8 %
- Transformer:
- none
- MPPT Quantity :
- 1
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
