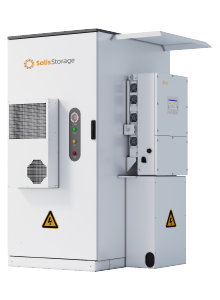

SolisStorage PrimePower 109kWh Battery with 50kW Inverter - Standard version +C5 Protection (Master
Product form
In stock
Fast shipping
Collection available More info
Overview
Part No: SOL-PRIMEPOWER-109KWH-50KW-NV-C5-M Storage Systems - Hybrid Inverter
SolisStorage PrimePower 109kWh/50kW
SolisStorage PrimePower -109kWh
Standard: Aerosol, explosion relief valve, fire water inlet
Optional (Pro-Version here): Combustible gas detector, explosion relief plate, audible and visual alarm
SolisCloud: Intelligent remote control, AI optimisation and instant troubleshooting – all in one platform <10 ms switchover from grid-connected to off-grid for uninterrupted power supply or <20 ms with multiple inverters connected in parallel Flexible system expansion, up to 500 kW/6.5 MWh
Design & Build
Dimensions: 1270 × 2070 × 1357 mm (with inverter)
Weight: 1393 kg total-1320 kg (Cabinet) + 73 kg (Inverter)
Noise Level: 70 dB at 1 m
Ingress Protection: IP55 (cabinet), IP66 (inverter)
Anti-Corrosion: C5 Environmental Protection
S6-EH3P50K-H (SOL-S6-EH3P50K-H)
Attention: an external ATS is needed for connecting more than 6 units in parallel, an ATS from another manufacturer can be used with these Solis units. (Solis external ATS is under development)
